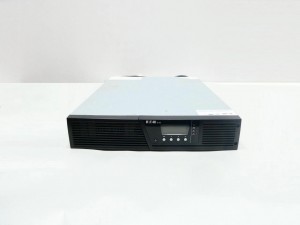

Eaton PW9130L2000R-XL2U Uninterruptible Power Supply
Eaton PW9130L2000R-XL2U
The PW9130L2000R-XL2U is a member of Eaton’s 9130 series Uninterruptible Power Supply (UPS), featuring a rated power of 2000 VA and a modular design. It is ideal for small-to-medium-sized data centers, critical enterprise loads, and locations requiring high-reliability power supply. This model is equipped with dual battery compartments (XL2U), enabling redundant power supply and enhancing system fault tolerance.
Key Technical Specifications
- Rated Power: 2000 VA / 1800 W
- Input Voltage: 208-240 V (Single-phase) or 380-415 V (Three-phase)
- Output Voltage: Same as input (auto-regulation)
- Backup Runtime: 10 ~ 30 minutes, depending on the configured battery capacity
- Efficiency: Approximately 94% (at full load)
- Rack Dimensions: 2U height, 19-inch width, depth of about 600 mm
- Protection Class: IP20 (for indoor use)
- Operating Temperature Range: 0 °C ~ 40 °C
Product Features
- Modular Dual Battery Compartments: The XL2U structure supports parallel or series connection of two battery packs, facilitating capacity expansion and redundancy.

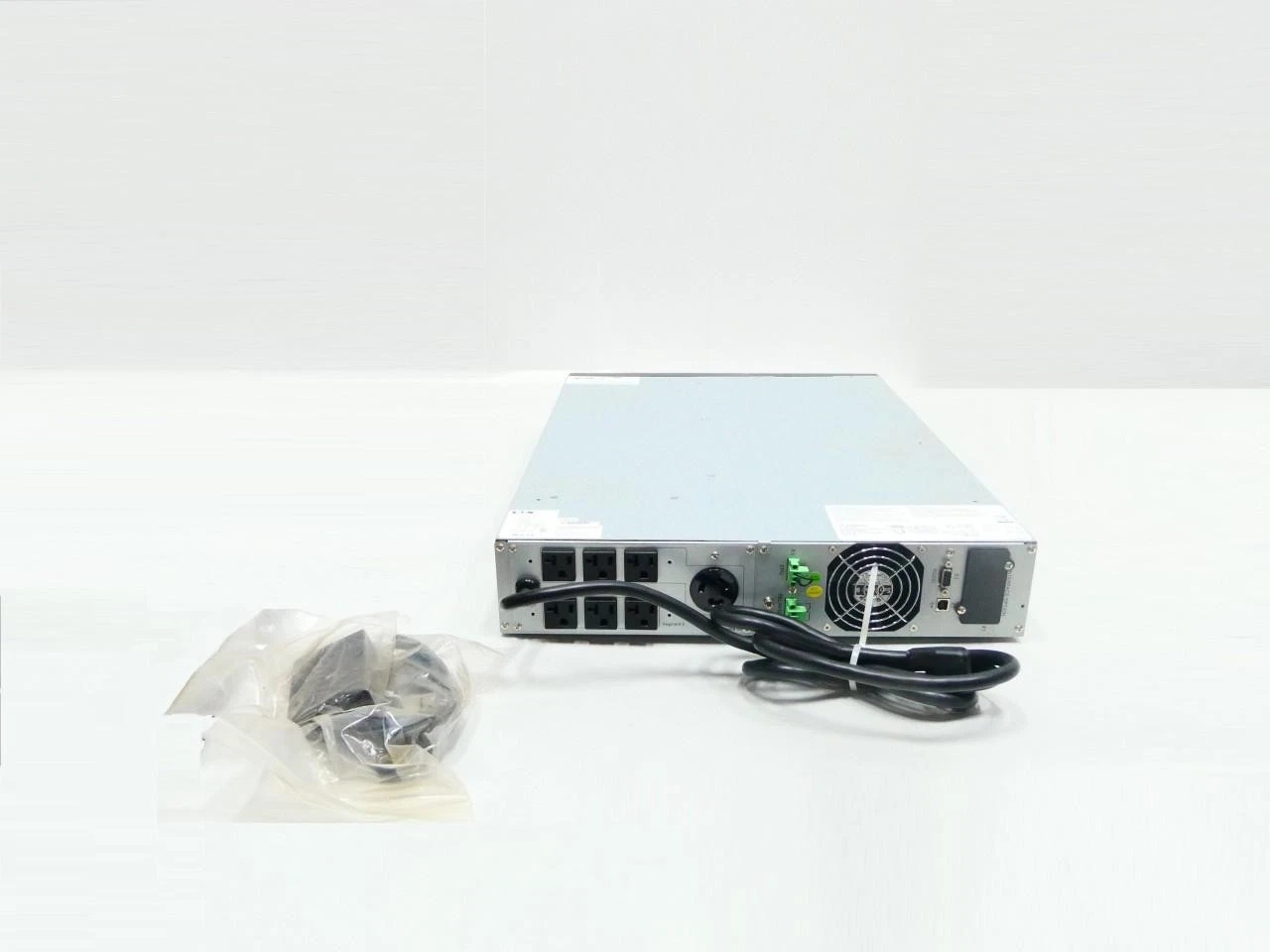

- Versatile Interfaces: Equipped with an IEC C14-10A input socket, four 6-20R output sockets, one L6-20 output socket, a REPO (Remote Emergency Power Off) port, RS-232 serial port, USB interface, and a communication compartment, meeting diverse communication and monitoring requirements.
- High Reliability: Adopts a fully digital control chip, with online monitoring, automatic failover, and battery management functions.
- Easy Maintenance: The modular design allows battery replacement or component maintenance without downtime, reducing operation and maintenance costs.
Structure and Components
- Power Module: Core inverter/rectifier circuit that provides stable voltage and current output.
- Battery Compartments (XL2U): Two hot-swappable lead-acid or lithium-ion battery compartments.

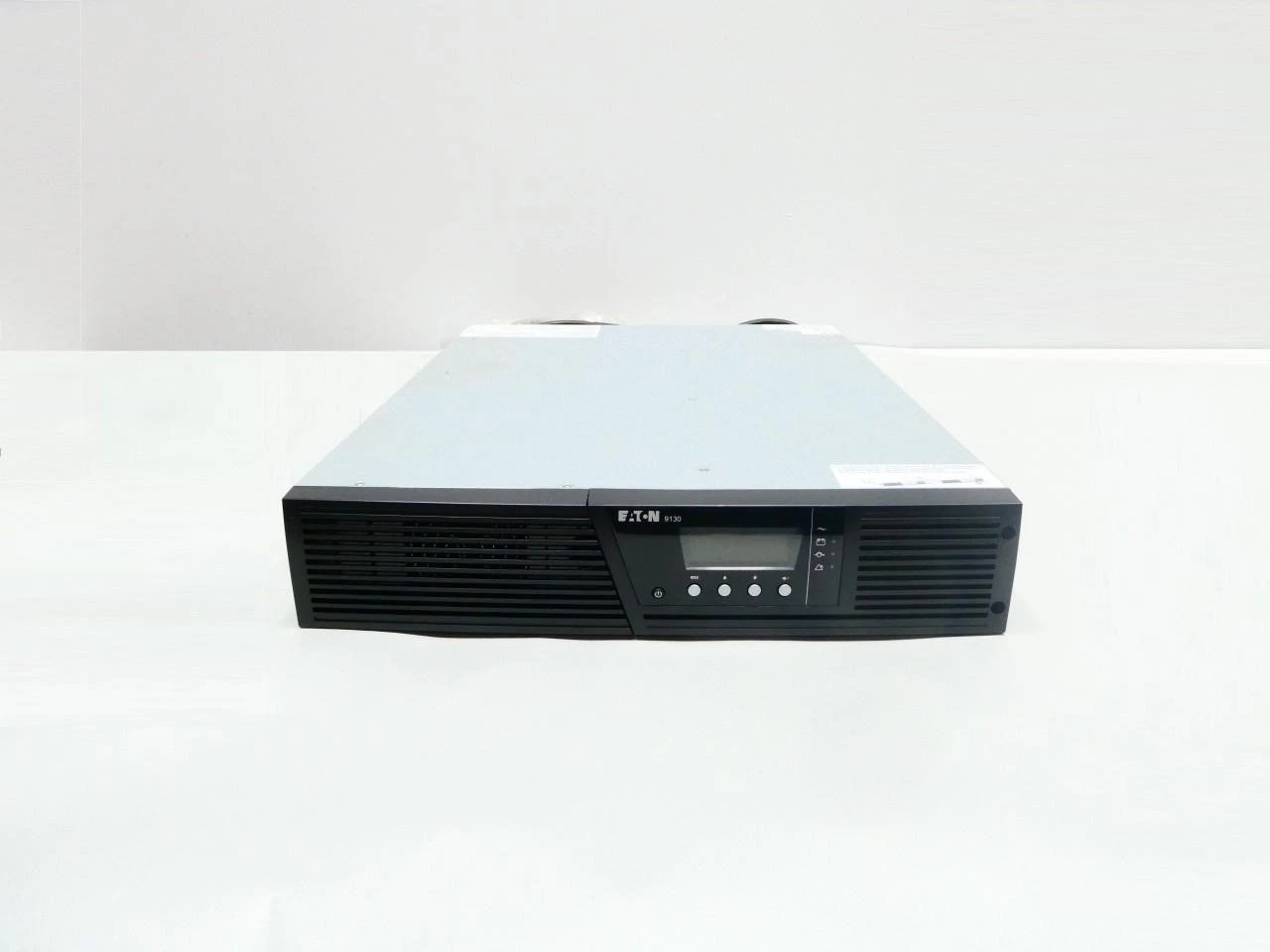

- Control Panel: LCD display and buttons for local parameter viewing and configuration.
- Communication Compartment: Supports multiple protocols such as SNMP and Modbus, as well as USB, enabling easy integration with BMS (Building Management System) or data center management platforms.
- Output Terminal Block: Offers a variety of standard sockets to meet different load connection needs.
Typical Application Areas
- Small-to-medium-sized enterprise server rooms
- Power supply for medical equipment (e.g., imaging systems, monitors)
- Financial transaction systems
- Educational and research laboratories
- Communication base station power distribution
- Critical industrial control systems
Installation and Maintenance Guidelines
Rack Installation

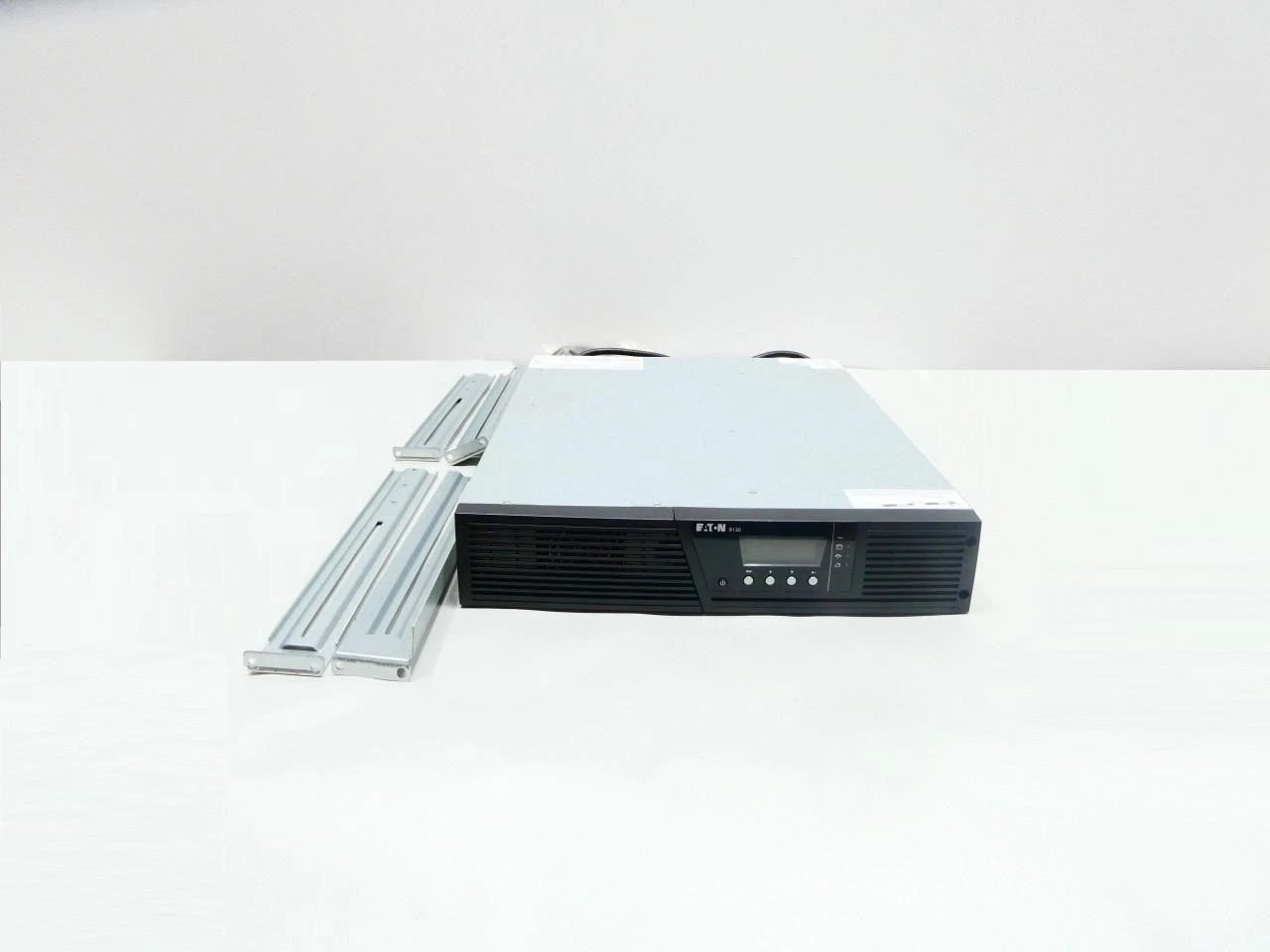

- Install in a standard 19-inch rack, ensuring adequate ventilation at the front and rear. It is recommended to reserve at least 100 mm of space at the rear for heat dissipation.
Power Wiring
- Use a 10A plug complying with IEC C14 standards for the input terminal. Select 6-20R or L6-20 sockets for the output terminal based on load requirements.
Battery Compartment Assembly
- Before assembling or replacing the battery compartment, disable the REPO port to ensure the UPS is in safe mode, then perform hot-swapping.
Communication Configuration
- Connect to the monitoring system via RS-232, USB, or network interface, complete SNMP/Modbus parameter settings, and achieve remote status monitoring.
Regular Inspections
- Inspect battery capacity, terminal connections, and cooling fan operation every 6 months. Perform battery equalization or replacement when necessary.
Troubleshooting
- When an alarm occurs, first check the fault code displayed on the LCD. Use the remote power-off function of the REPO port for safe isolation, then replace or repair the corresponding components in accordance with the user manual.
