Eaton BFAHFD12-A Electrical Component Series

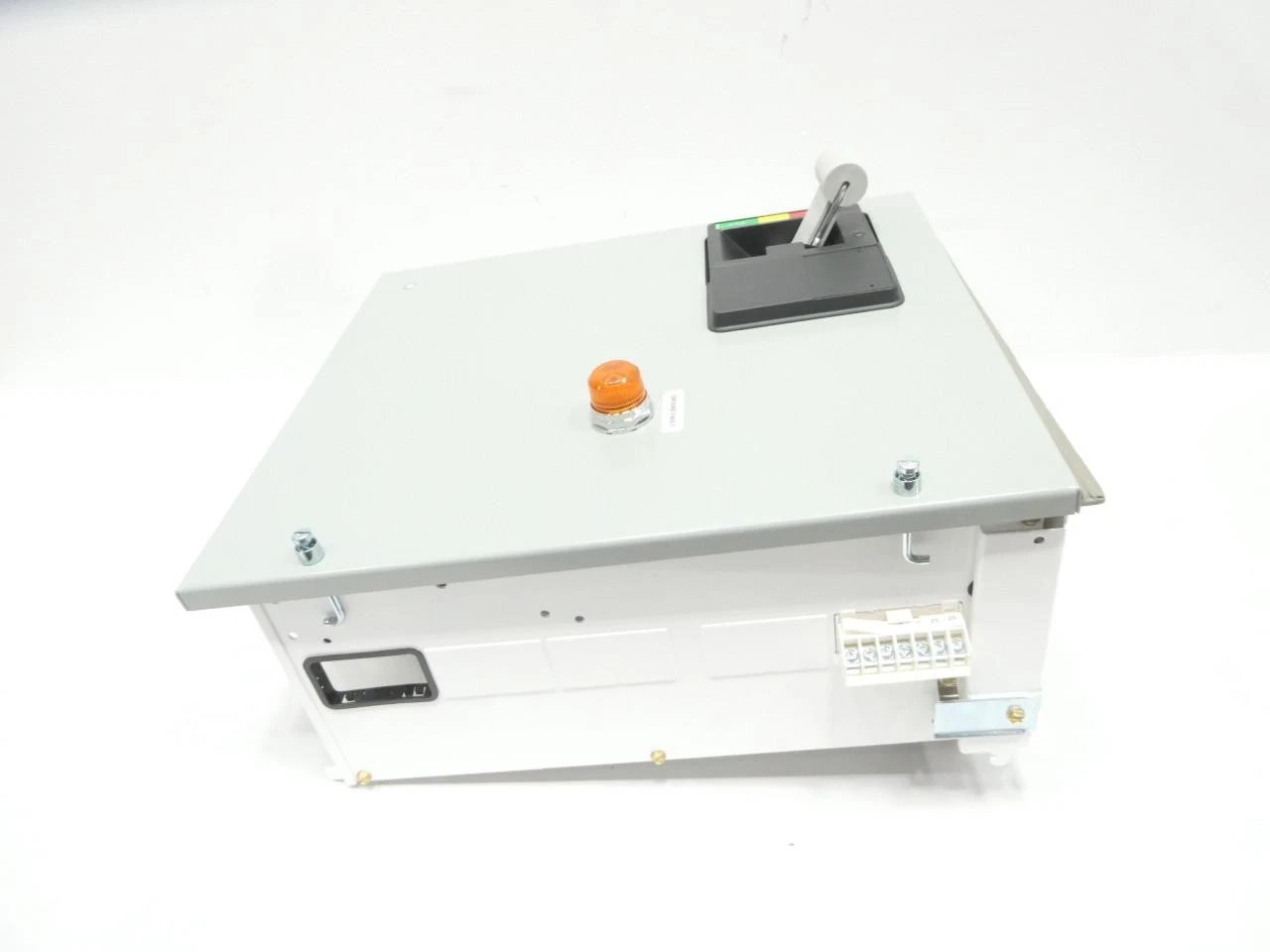

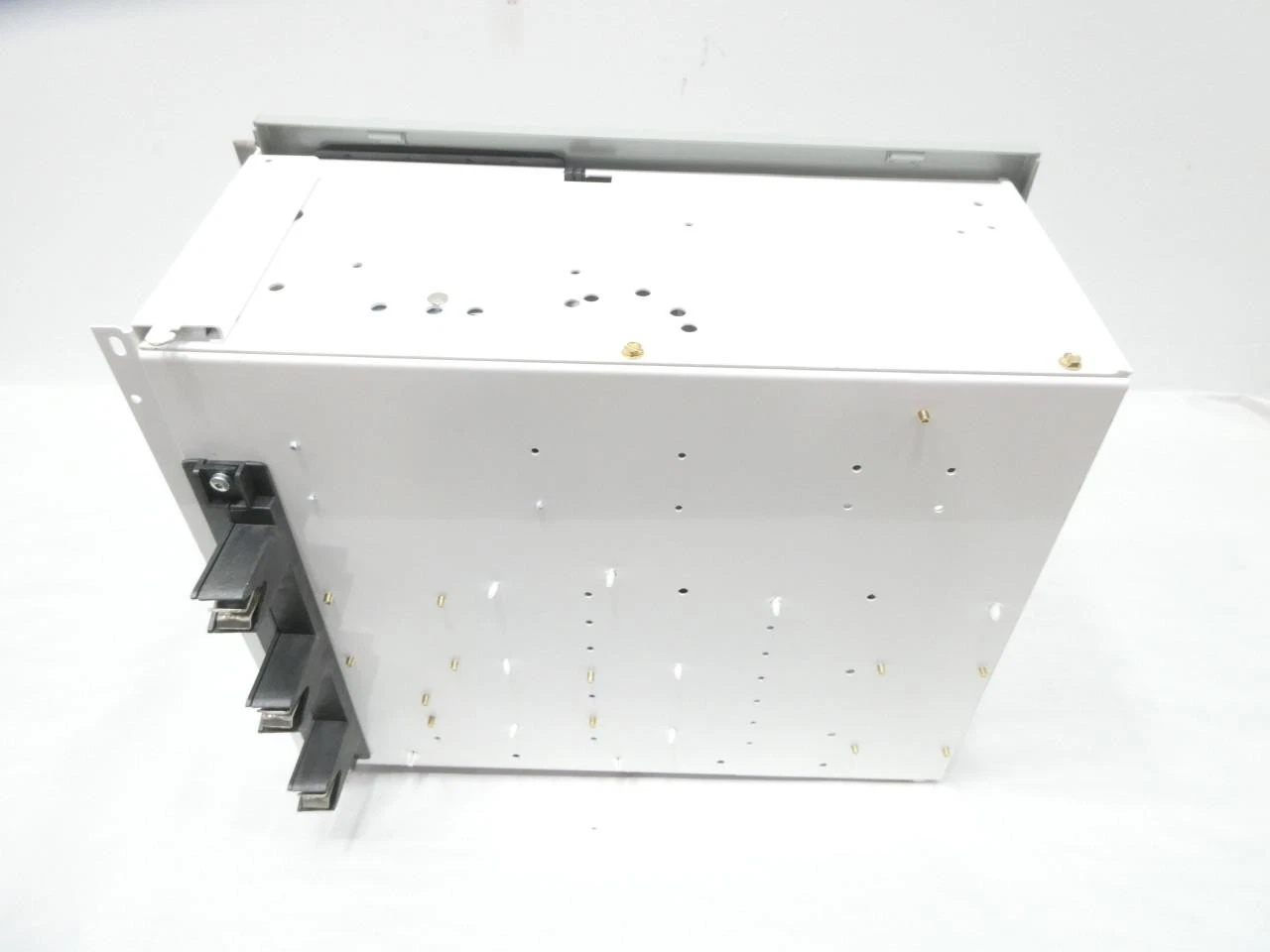

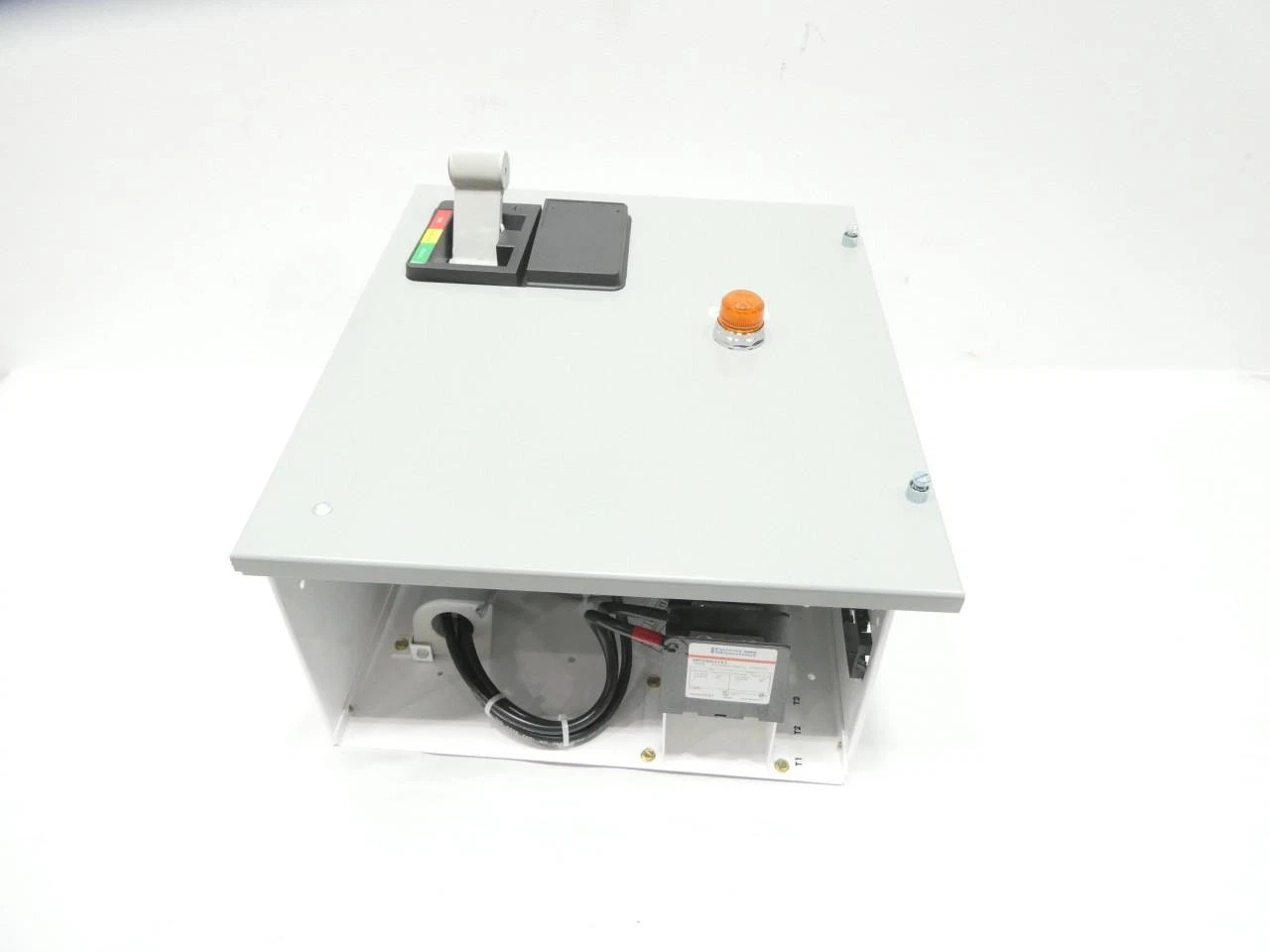

Eaton BFAHFD12-A
Overview
BFAHFD12-A is part of Eaton‘s high-performance electrical component series, designed for industrial equipment requiring reliable power connection and protection. Featuring a modular design, this model enables quick on-site installation and replacement.
Key Specifications
- Rated Voltage: 125 V / 250 V (Single-phase / Three-phase)
- Rated Current: 50 A
- Socket Type: 12-pin socket compliant with NEMA 14-50R standard, supporting 3-pole 4-wire grounding
- Mounting Method: Suitable for both Surface Mount Technology (SMT) and Through-Hole Mounting (THM)
- Operating Temperature Range: -40 °C ~ +85 °C
- Dimensions: Approximately 115 mm × 115 mm × 55 mm (Length × Width × Height)
- Protection Class: IP20 (For indoor use)
Product Features
- High Reliability: Constructed with high-temperature resistant, corrosion-resistant and flame-retardant materials, complying with IEC 60320 standard.
- Modular Structure: Can be combined with other Eaton matching electrical modules (such as circuit breakers, contactors) to form a complete power distribution system.
- Easy Maintenance: Adopts snap-on fixing for quick assembly and disassembly, facilitating on-site inspection and repair.
- Strong Compatibility: Supports dual-voltage power supply of 125 V and 250 V, adapting to various industrial power environments.
Structure and Composition
- Housing: High-strength flame-retardant plastic, providing mechanical protection.
- Terminal Blocks: Screw-type terminals, compatible with cables of 4 AWG and above.
- Socket Body: 12-pin NEMA 14-50R with silver-plated copper contacts inside to ensure low contact resistance.
- Protective Cover: Dustproof and moisture-proof design to extend service life.
Typical Application Fields
- Power input for industrial automation equipment
- Front-end access for UPS and power distribution cabinets in data centers
- Power supply interface for high-power electric tools and machine tools
- Power distribution for on-site temporary power boxes and mobile workstations
Installation and Maintenance Guidelines
- Installation: Reserve corresponding mounting holes in the power distribution cabinet or chassis, fix the terminal with screws, and wire according to electrical specifications.
- Wiring: Ensure the wire cross-sectional area meets the rated current requirements, and tighten the terminals to the specified torque.
- Inspection: Regularly check the tightness of terminals and whether the socket surface is worn or corroded.
- Replacement: With snap-on structure, the old unit can be pulled out and the new unit inserted directly after power off, no additional tools required.
————————————————————————————————————-
