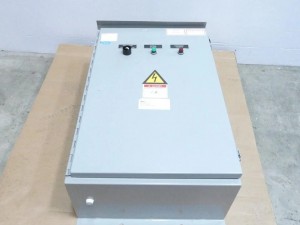

Eaton NS-ATS-080A-250VDC-01331

1. Overview

2. Key Technical Parameters

3. Product Features

• Fast and Seamless Switching: Automatically switches to the backup power supply within 10 ms after the main power failure to ensure uninterrupted load.
• Modular Structure: Adopts detachable power modules for easy on-site replacement or upgrading.
• High Short-Circuit Withstand Capacity: 10 kA short-circuit capacity meets the safety requirements of industrial DC systems.
• Multiple Protections: Equipped with overcurrent, overvoltage, undervoltage, and temperature protection functions, combined with internal diagnostic alarms.
• Strong Compatibility: Supports 24 V DC control signal and can be integrated with PLC, DCS, or remote monitoring systems.
• Easy Maintenance: The front panel is equipped with status indicators and manual switching buttons. The internal part uses screw-type terminals for quick inspection and maintenance.

4. Structure and Composition

• Enclosure: Metal rack-mount enclosure, compliant with IEC 60529 IP20 protection class.
• Power Modules: Including main power input, backup power input, and output terminals.
• Control Unit: Internal microprocessor implements automatic detection and switching logic, providing relay output.
• Indicators and Manual Buttons: The front panel is equipped with main/backup power indicators and manual switching buttons.
• Terminals: Screw-type terminals with clear identification, supporting quick wiring.
• Heat Sink: Internal heat sink ensures temperature control under high load.

5. Typical Application Fields

• Data Center DC Power Distribution: Provides uninterrupted DC power supply for servers and storage devices.
• Communication Base Stations: Ensures continuous power supply for critical base station equipment during grid fluctuations.
• Industrial Automation Systems: Equipment with high power reliability requirements such as PLCs, CNC machine tools, and robots.
• Rail Transit and Electric Vehicle Charging Stations: Backup switching for DC power supply systems.
• Energy Storage Systems: Cooperates with Battery Management System (BMS) to realize safe switching of battery packs.

6. Installation and Maintenance Guidelines

Installation Environment

• For indoor use only. Maintain good ventilation and avoid direct sunlight or high-temperature heat sources.
• The ambient temperature should be within the range of –40 °C ~ +85 °C, and the humidity should not exceed 95% (non-condensing).

Wiring Requirements

• Use cables compliant with IEC 60204‑1 standard. The cross-sectional area should meet the 80 A rated current (10 mm² copper core is recommended).
• Main and backup power input terminals must be marked separately to avoid wrong connection.
• Grounding terminals must be reliably grounded in accordance with local electrical codes.

Commissioning Steps

• Pre-power Inspection: Confirm that all wiring is firm, terminal identification is correct, and grounding is good.
• Functional Test: First perform a manual switch to confirm the indicator and output status. Then simulate main power failure to verify that the automatic switching time is ≤ 10 ms.
• Alarm Verification: Check whether overcurrent, overvoltage, and undervoltage alarms are triggered normally and displayed on the upper computer or on-site indicators.

Daily Maintenance

• Every 6 months: Check the tightness of wiring terminals and remove dust and corrosion.
• Every year: Conduct a functional test, including manual/automatic switching, alarm function, and short-circuit capacity verification (using a dedicated tester).
• Log Records: Record all maintenance activities, faults, or component replacements for traceability.

Troubleshooting

• Indicators Not Lighting: Check power supply, wiring, and internal fuses.
• Switching Delay: Confirm whether the control signal line is normal and check if the internal microprocessor has entered an error state (diagnosable via the upper computer).
• Frequent Overcurrent Alarms: Verify if the load current exceeds the rated value or check if the cable cross-sectional area is insufficient.

————————————————————————————————————-
