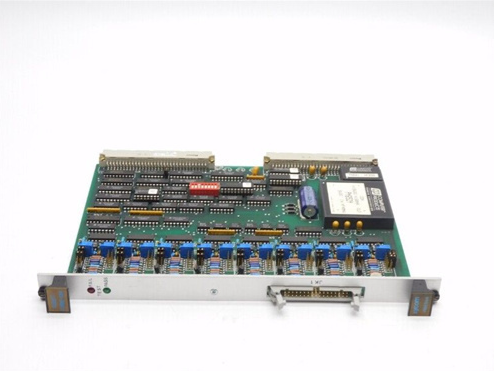

XYCOM 4810

The XYCOM 4810 series is a high-performance control and display module designed for industrial automation. It is widely used in power systems, petrochemicals, general automation, and other fields. Adopting a modular design, the product can be used independently or embedded into existing systems. It features a rugged and durable structure, enabling stable operation in harsh environments (wide temperature range, strong vibration, electromagnetic interference).

Key Technical Specifications

• Processor: 64-bit industrial-grade processor (some models come with Windows 10 IoT Enterprise)
• Memory/Storage: 4 GB DDR4 RAM, 64 GB SSD (512 KB RAM/Flash versions also available)
• Power Supply: 24 V DC input, operating temperature range of -20 ℃ ~ +60 ℃
• I/O InterfacesDisplay/Operation: Equipped with 9-inch or 15-inch industrial touch screen, providing Operator Interface Panel (e.g., 4810E, 4810A)
  • Digital I/O: 16 DI / 16 DO (up to 128 DI/DO for some models)
  • Analog I/O: 4 AI / 4 AO (4-channel analog output boards also available)
  • Communication: Ethernet, RS-232, RS-485, supporting multiple industrial protocols
• Dimensions/Structure: Typical dimensions of approximately 500 mm × 1000 mm, with aluminum-iron alloy housing and internal modular layout for easy maintenance

Product Features

• Modular Design: Hardware modules can be flexibly combined to facilitate system expansion or replacement.
• Industrial-Grade Reliability: Resistant to vibration, shock, and electromagnetic interference, suitable for harsh on-site environments.
• High I/O Density: Rich digital and analog channels to meet complex control requirements.
• Multi-Protocol Compatibility: Multiple communication methods such as Ethernet and serial ports, enabling easy integration into upper-level systems like SCADA and DCS.
• Easy Maintenance: Modular structure and standardized interfaces allow quick on-site replacement and troubleshooting.

Structure and Composition

• Housing: Aluminum-iron alloy frame, providing protection and heat dissipation.
• Power Supply Module: 24 V DC input with internal regulated power supply.
• Processor Board: Equipped with 64-bit CPU and memory.
• I/O Expansion Board: Digital, analog, and communication interfaces integrated in detachable slots.
• Display/Operation Panel: Touch screen or LCD, with keyboard/buttons for local operation.
• Heat Dissipation System: Heat sinks or fans to ensure thermal stability during long-term operation.

Typical Application Fields

• Power Systems: SCADA data acquisition, remote control, relay protection.
• Petrochemicals: Process control, safety interlocking, instrument monitoring.
• General Industrial Automation: Production line monitoring, robot control, packaging equipment.
• Large Electromechanical Systems: High-reliability demand scenarios such as wind power, nuclear power, and rail transit.

Installation and Maintenance Guidelines

• On-Site Location Selection: Ensure the cabinet or mounting bracket is stable, avoiding strong magnetic fields and high-temperature areas.
• Power Wiring: Use power supplies complying with 24 V DC standards and check the reliability of grounding.
• Wiring Layout: According to the marks in the I/O manual, distinguish between digital/analog and input/output to prevent wrong connection.
• Communication Configuration: Set correct IP, baud rate, and protocol parameters on Ethernet or serial ports.
• Heat Dissipation Inspection: Confirm that heat sinks or fans are not blocked and clean dust regularly.
• Firmware/Software Upgrade: Use official upgrade tools to maintain system security and compatibility.
• Troubleshooting: Use built-in diagnostic LEDs and error logs to locate faults, and replace corresponding modules if necessary.

————————————————————————————————————-
