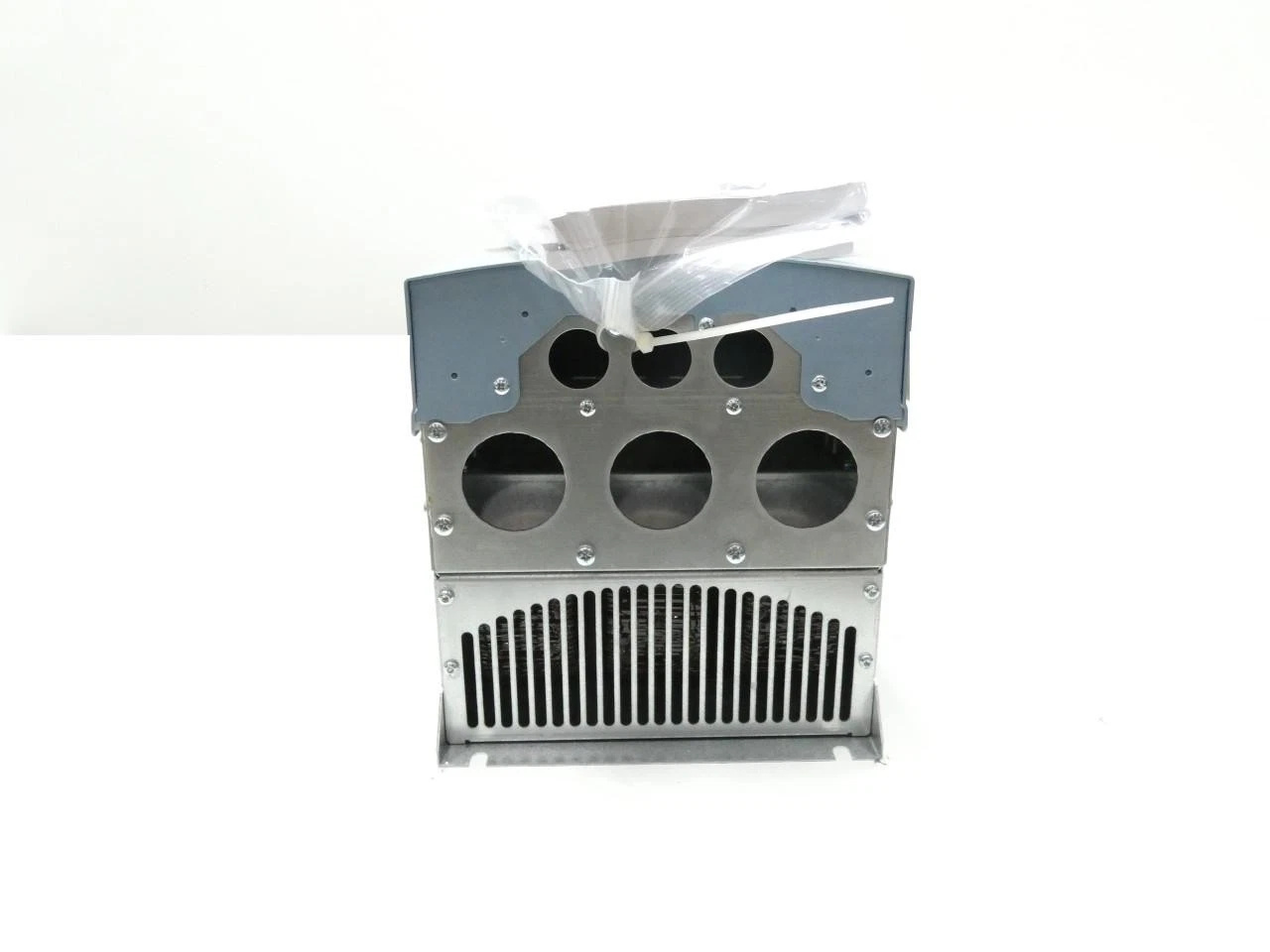

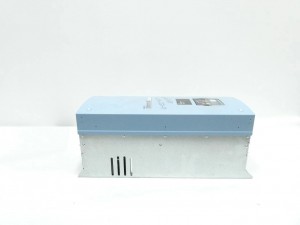

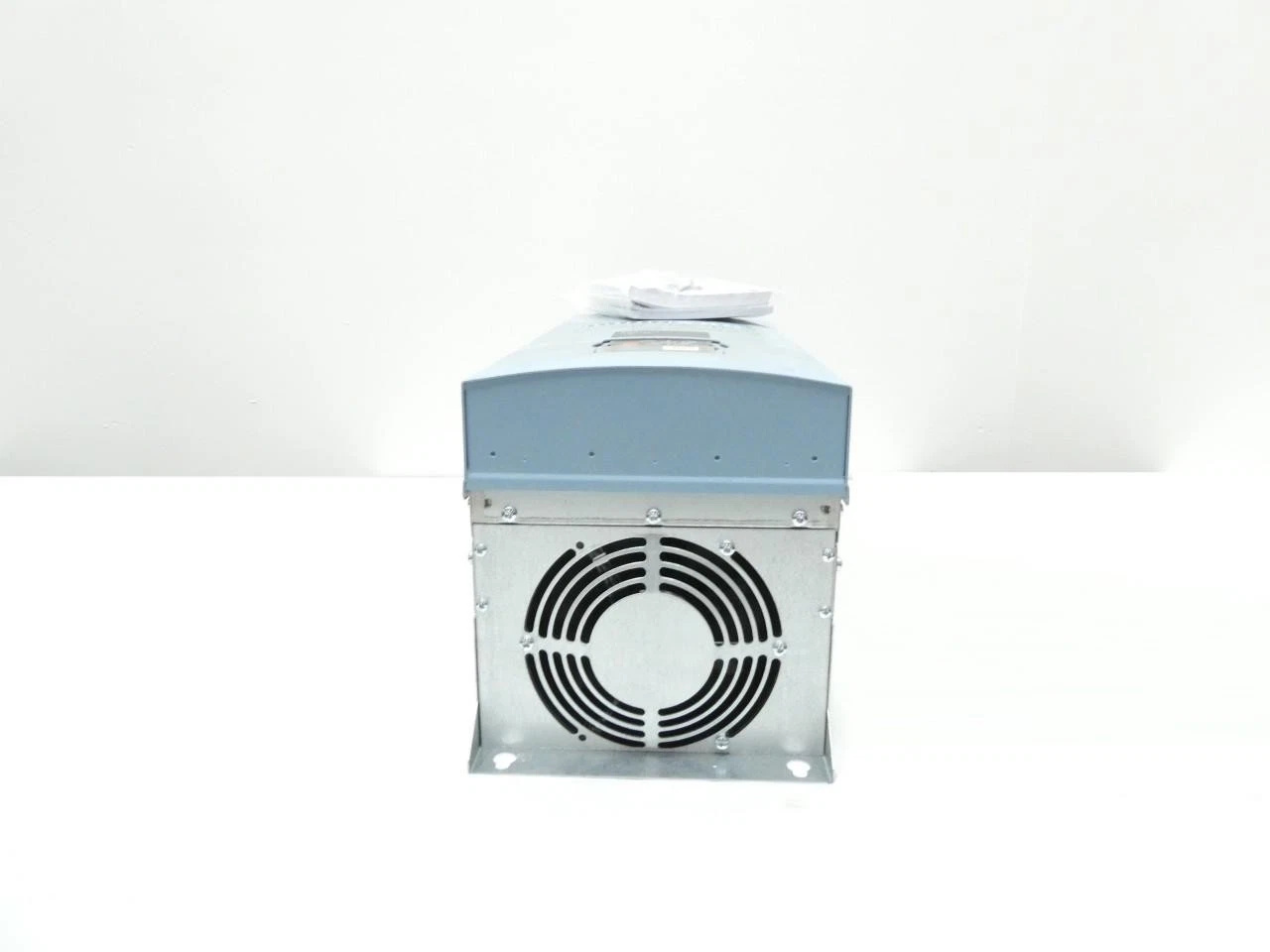

Eaton SVX050A2-4A1N1

SVX050A2-4A1N1 is an AC motor drive (VFD) from Eaton‘s SVX series. It is a high-performance, compact variable frequency drive. This model is specifically designed for 0.5 kW (≈ 0.7 HP) power, four-pole, single-phase or three-phase motors. It is commonly used in small pumps, fans, compressors, and other industrial equipment requiring precise speed control.

Main Technical Specifications

• Rated Power: 0.5 kW (≈ 0.7 HP)
• Rated Voltage: Three-phase 200-240 V (380-480 V optional)
• Rated Current: Approximately 2.5 A (varies by supply voltage)
• Output Frequency Range: 0 ~ 60 Hz (adjustable)
• Control Method: V/Hz (Vector control optional)
• Dimensions: Approximately 115 mm × 115 mm × 70 mm (compact chassis)
• Protection Class: IP20 (for indoor use)
• Operating Temperature: -10 °C ~ +45 °C
• Communication Interfaces: Modbus RTU (RS-485), optional EtherNet/IP, Profibus DP

Product Features

• High Energy Efficiency: Adopts the latest IGBT power modules with efficiency up to 96% or higher, reducing energy consumption and heat generation.
• Compact and Reliable: Features a metal housing with a robust structure, suitable for installation in space-constrained environments.
• Easy Commissioning: Equipped with an intuitive LCD/LED display and local parameter editing function, supporting quick parameter setting and fault diagnosis.
• Multiple Control Modes: Offers various speed control methods including V/Hz, vector (FOC), and torque control to meet different load requirements.
• Comprehensive Protection Functions: Provides full-range protection against overcurrent, overvoltage, undervoltage, overheating, phase sequence error, short circuit, etc., enhancing system safety.
• Communication Compatibility: Built-in Modbus RTU, supporting fieldbus and industrial Ethernet expansion for easy integration into upper-level computers or PLC systems.

Structure and Composition

• Power Module: IGBT + diode array, responsible for high-frequency switching to achieve voltage/frequency conversion.
• Rectifier/Inverter Circuit: Converts AC input to DC through rectification, then inverts it to AC with adjustable frequency for output.
• Control Unit: DSP/microprocessor-based control chip that executes V/Hz or vector control algorithms.
• Heat Dissipation System: Internal heat sink combined with housing heat dissipation ensures thermal management for long-term operation.
• Human-Machine Interface (HMI): LCD/LED display, buttons or knobs for local parameter setting and status monitoring.
• Communication Ports: RS-485 (Modbus RTU), optional Ethernet/fieldbus interfaces.

Typical Application Areas

• Small pumps (circulating pumps, centrifugal pumps)
• Fans and blowers
• Compressors (screw, piston)
• Conveyors, elevators
• Packaging machinery, textile equipment
• Other light-load industrial equipment requiring variable frequency speed control

Installation and Maintenance Guidelines

On-site Wiring

• Confirm that the supply voltage matches the model (200-240 V or 380-480 V).
• Use cables that comply with local electrical codes, ensure correct phase sequence to avoid protection actions caused by phase sequence errors.

Chassis Fixing

• Secure the drive to a sturdy bracket or cabinet using bolts. Maintain sufficient heat dissipation space around the chassis (at least 30 mm recommended).

Grounding

• Ensure reliable grounding to prevent electromagnetic interference and safety hazards.

Parameter Setting

• Input basic motor parameters such as rated power, rated current, and speed range through the local LCD/LED interface or upper-level software.
• For vector control, provide the motor’s rotor resistance/inductance data.

Commissioning

• First run at low speed and low load, check if current, temperature, noise, etc., are within normal ranges.
• Gradually increase the load and observe if the protection functions are triggered normally.

Daily Maintenance

• Regularly check for dust accumulation on heat sinks and inside the chassis, clean if necessary.
• Inspect the tightness of wiring terminals to prevent loosening due to vibration.
• Back up parameters every 6 ~ 12 months to avoid setting loss caused by unexpected power outages.

Fault Diagnosis

• The drive has a built-in fault code display. Combined with the user manual, problems (such as overcurrent, overheating, phase sequence error) can be quickly located.
• For in-depth diagnosis, real-time operating data can be read via Modbus RTU or remote monitoring can be performed using Eaton’s Drive-Assist software.

————————————————————————————————————-
