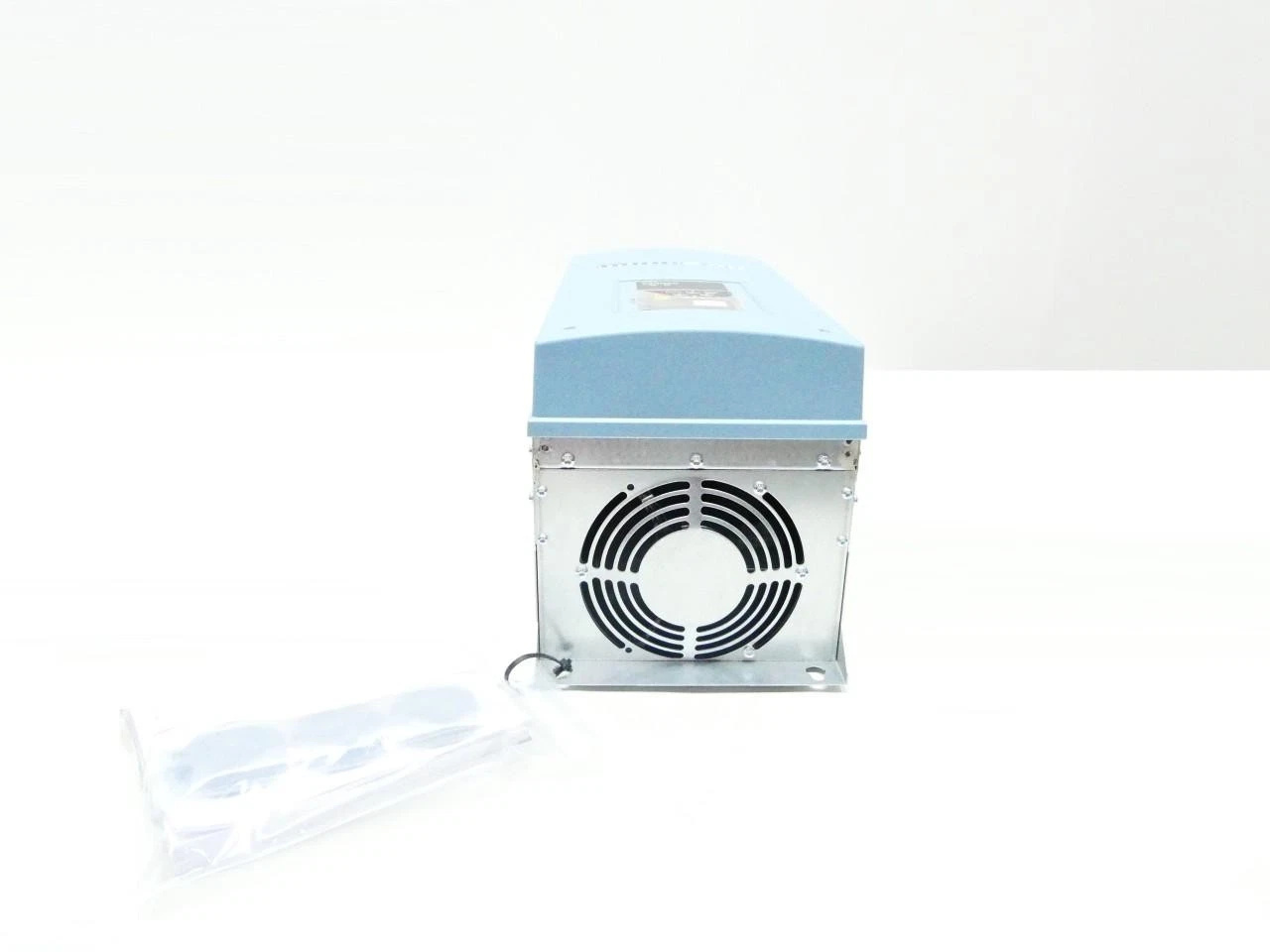

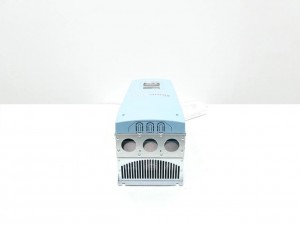

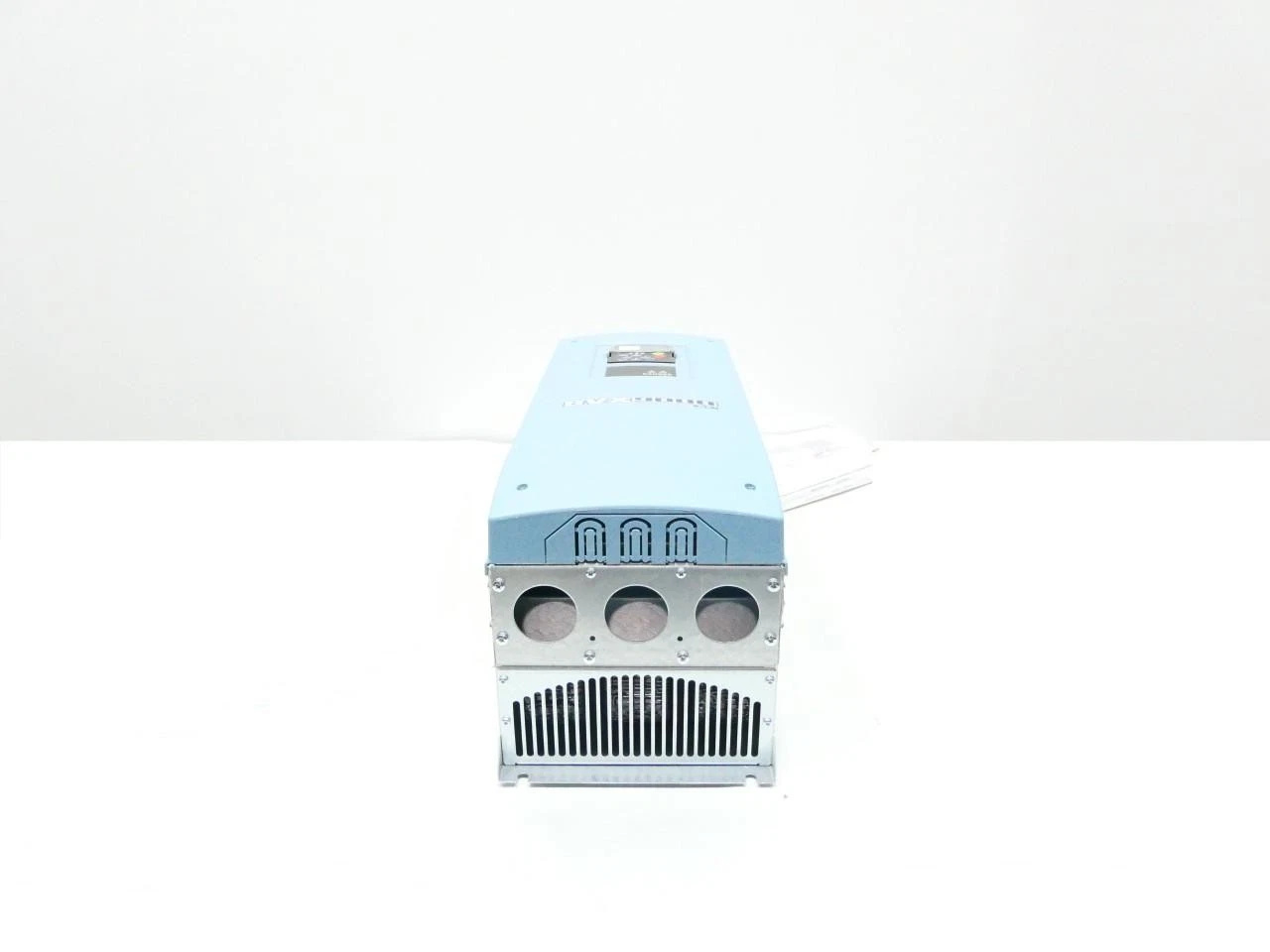

Eaton SVX040A1-4A1N1

A 40 HP (≈30 kW) / 480 V AC drive, it belongs to the Eaton SVX 9000 series of general-purpose Variable Frequency Drives (VFDs). This model is used for speed control, soft starting, and motor protection in industrial automation.

1. Overview

• Product Positioning: Designed for speed control of general-purpose motors with medium and small power (around 30 kW), suitable for various mechanical equipment requiring efficient and reliable variable frequency drives.
• Series Features: The SVX 9000 series adopts a modular design, featuring a wide voltage range, rich communication interfaces, and multiple protection functions. It meets the safety and performance requirements of the IEC 61800-5-1 standard.

2. Key Technical Specifications

3. Product Features

• High Efficiency & Energy Saving: Adopts the latest IGBT/IGBT-FS modules with an operating efficiency of ≥ 96%, reducing energy consumption and heat dissipation.
• Modular Structure: Separated main unit, power module, and control board for easy on-site replacement and upgrading.
• Multiple Control Modes: Supports traditional V/F control, vector control (FOC), and built-in torque limiting function to meet different load requirements.
• Rich Communication Options: Standard RS-485 (Modbus), optional CANopen and EtherNet/IP, facilitating integration into upper-level systems (SCADA, MES).
• Comprehensive Protection Functions: Multiple protections including overcurrent, overvoltage, undervoltage, phase sequence error, overheating, and short circuit to improve system reliability.
• Easy Debugging: Built-in parameter editor and LCD/LED display, allowing parameter setting on-site via keyboard or PC software.
• Compliance with International Safety Standards: Meets IEC 61800-5-1, UL 508, and CE marking, suitable for global markets.

4. Structure & Composition

• Enclosure: Metal housing (IP21) with internal heat sinks and optional fans to ensure thermal management.
• Power Module: Uses IGBT power semiconductors to provide high-frequency switching for wide-range frequency speed control.
• Control Board: Microprocessor (DSP) responsible for PWM generation, closed-loop control, and communication protocol stacks.
• Input/Output Terminals: Three-phase input terminals, three-phase output terminals, digital I/O, optional analog I/O, and communication ports.
• Human-Machine Interface (HMI): LED/LCD display + key panel for local parameter viewing and adjustment.

5. Typical Application Areas

6. Installation & Maintenance Guidelines

On-Site Inspection

• Confirm that the power supply voltage, phase sequence, and grounding meet specifications.
• Check cabinet ventilation and heat dissipation conditions to ensure the ambient temperature is within the range of –10 °C ~ + 50 °C.

Mechanical Installation

• Fix using DIN-rail or panel brackets, keep horizontal, and avoid vibration.
• Maintain a minimum gap of 30 mm between the enclosure and surrounding obstacles for heat dissipation.

Electrical Wiring

• Connect three-phase power supply, output terminals, control signals, and communication lines according to the wiring diagram.
• Use cables compliant with IEC 60364 standard and tighten terminal screws to the specified torque.

Parameter Setting

• Input basic motor parameters such as rated power, rated current, and speed via the local keyboard or PC software (Eaton Drive-Config).
• Configure protection thresholds (overcurrent, overvoltage, undervoltage, overheating) and required communication protocols.

Commissioning & Verification

• Perform no-load operation before startup to check if current, temperature, and output waveform are within normal ranges.
• Gradually apply load and observe if acceleration/deceleration time and torque limit meet requirements.

Daily Maintenance

• Regular Inspection: Check wiring tightness, heat sink cleanliness, and fan operation (if equipped) every 6 months.
• Firmware Upgrade: Update the control board software according to the latest firmware versions released by Eaton to obtain new functions and security patches.
• Fault Diagnosis: Use built-in fault codes (LED/display) or read diagnostic registers via Modbus for quick problem location.

Safety Notes

• Cut off power supply and lock/tag out (LOTO) before any maintenance operations to prevent accidental startup.
• Wear insulating gloves, use qualified tools, and comply with local electrical safety regulations.

————————————————————————————————————-
