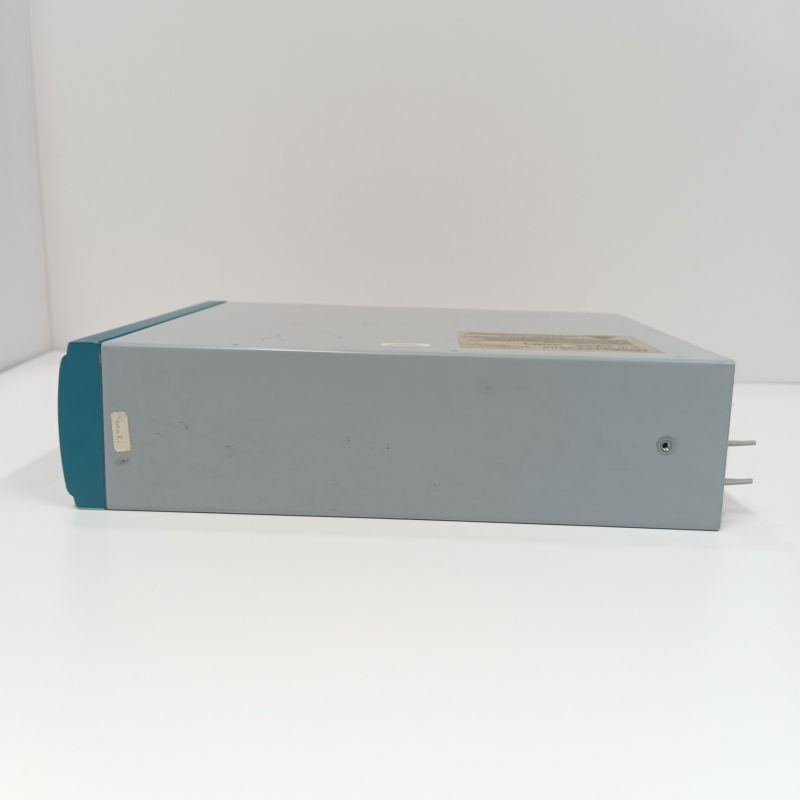

EMERSON FLOBOSS S600

Product Positioning

1. Main Technical Specifications (Typical Configuration)

• Processor: ColdFire MPC8331 333 MHz (Linux) or 32 bit FPGA CPU
• Memory: 256 MB Flash + 128 MB DRAM + 4 MB RAM (with battery backup)
• Calculation Accuracy: ±0.05 % of reading (typical)
• Flow Standards: AGA 3/7/8/11, API MPMS 12.2, ISO 5167, GPA 2172, GERG, GOST, etc.
• Input Channels: Up to 16 channels of 4‑20 mA analog signals, pulse input (turbine/roots)
• Digital I/O: 4 relay inputs, 12 digital outputs
• Communication Interfaces: Ethernet (10/100 Mbps, dual redundancy), RS‑232/RS‑485, Modbus RTU/TCP, DNP3, OPC UA, HART, FOUNDATION Fieldbus, etc.
• Operating Temperature: –40 °C ~ +70 °C (IP66, NEMA 4X)
• Power Supply: 24 V DC or 100‑240 V AC (optional)
• Certifications: ATEX, IECEx, CSA C‑US explosion-proof certifications

2. Product Features

• High Precision: 64-bit double-precision floating-point arithmetic, meeting strict measurement standards such as API and AGA.
• Multi-flow/Multi-station: A single unit can process multiple liquid/gas flows simultaneously, suitable for complex measurement scenarios.
• Modular Hardware: CPU board + pluggable I/O boards, which can be flexibly expanded to 10 flows or more.
• Rich Communication Protocols: Ethernet, Modbus, HART, Profibus, OPC UA, etc., facilitating integration with DCS, SCADA, and MES systems.
• Powerful Diagnostics and Maintenance Functions: Built-in event logs, remote firmware updates, alarms, and self-tests, reducing on-site maintenance costs.
• User-Friendly Configuration Software (Config600): Provides expert mode and beginner mode, supporting offline programming, calibration, and troubleshooting.
• Industrial-Grade Reliability: IP66 protection, wide temperature range, and anti-vibration design, suitable for harsh on-site environments.

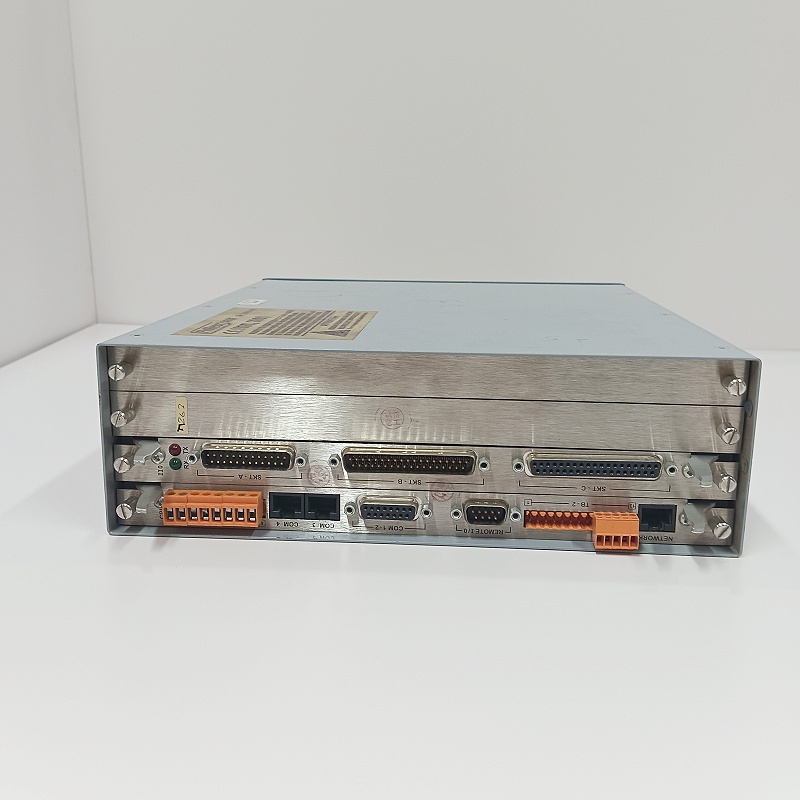

3. Structure and Composition

• Chassis: Metal housing with a detachable front panel, supporting wall-mounted or rail-mounted installation.
• CPU Board: The core processing unit, running Linux/real-time operating system, responsible for all calculations and communications.
• I/O Boards (Optional): For analog input (4‑20 mA), digital input/output, pulse counting, etc.
• Power Module: 24 V DC or 100‑240 V AC, with battery backup to ensure no data loss after power failure.

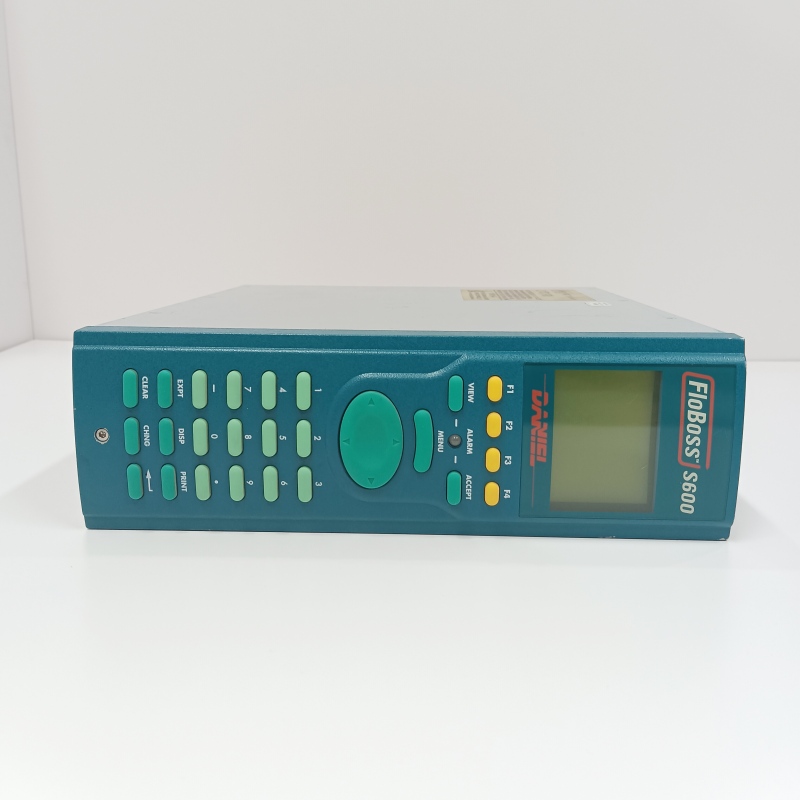

• Display/Operation Panel: High-resolution LCD, providing local parameter setting, real-time data display, and alarm confirmation.
• Communication Module: Ethernet/RS‑485 interface card, supporting multi-protocol stacking.

4. Typical Application Fields

• Oil & Gas Industry: Fiscal measurement, custody transfer measurement, batch loading, measurement station verification, pipeline flow monitoring.
• Chemical Industry: Process control, energy measurement, raw material/product measurement.
• Water Treatment Industry: Water supply, sewage flow measurement, energy consumption statistics.
• Power Industry (Gas/Coal-Fired): Fuel flow and calorific value calculation, power plant measurement.
• Food, Beverage & Pharmaceutical Industry: Liquid batching, packaging line flow monitoring.
• Other Industries: Any occasions requiring high-precision volume/mass/energy measurement.

5. Installation and Maintenance Points

Installation Preparation

1. Confirm that the on-site environment meets the requirements for temperature, humidity, IP protection level, etc.
2. Reserve sufficient space for power cables, grounding, and heat dissipation.
3. Prepare corresponding analog/digital/pulse terminal blocks according to the selected I/O boards.

Mechanical Installation

1. Fix the chassis with screws or rails, ensuring the panel is stably installed horizontally or vertically.
2. Disassemble and assemble the front panel and plug-in boards according to the instruction manual to prevent electrostatic discharge (ESD) from damaging electronic components.

Electrical Connection

1. Connect to 24 V DC (or AC) power supply, and check the power polarity and fuses.
2. Wire the analog input, digital I/O, pulse input, and communication ports according to the module manual.

Software Configuration

1. Use the Config600 software to set parameters such as fluid properties, measurement standards, calibration coefficients, and alarm thresholds.
2. Perform network configuration via Ethernet or Modbus to ensure the IP address and port match those of the upper-level system.

Commissioning and Verification

1. Run a self-test to check the status of all I/O channels, communication connectivity, and internal logs.
2. Conduct on-site calibration (e.g., using a calibration pump with known flow rate) to confirm that the measurement error is within the technical specification range.

Daily Maintenance

1. Regularly check the power supply, terminal blocks, and cooling fans, and remove dust.
2. Perform firmware updates every 6-12 months to obtain the latest measurement algorithms and security patches.
3. Conduct fault early warning through the built-in log or remote monitoring platform, and replace faulty modules in a timely manner.

————————————————————————————————————-
