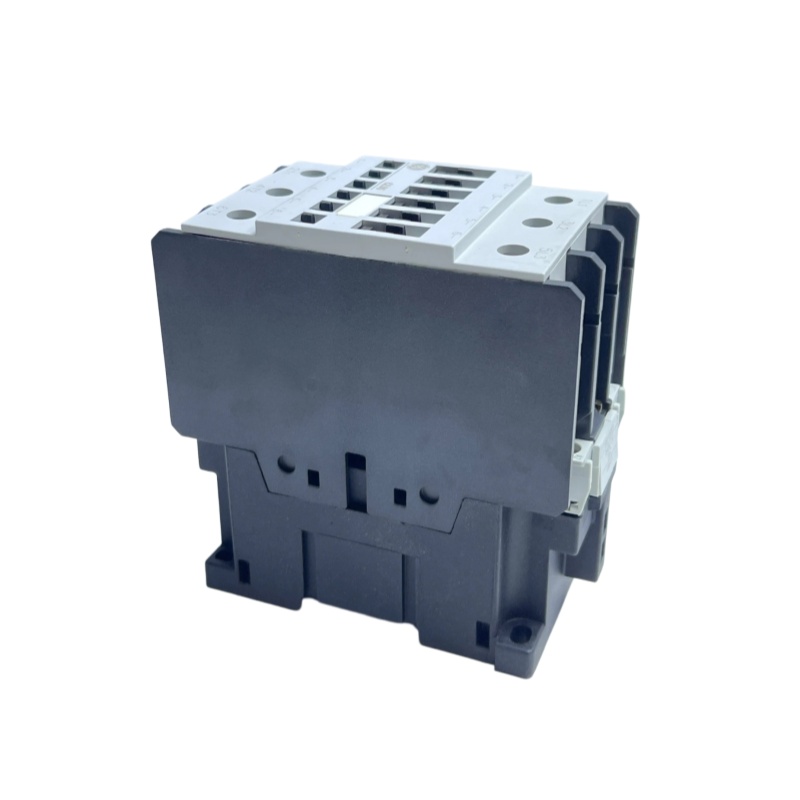

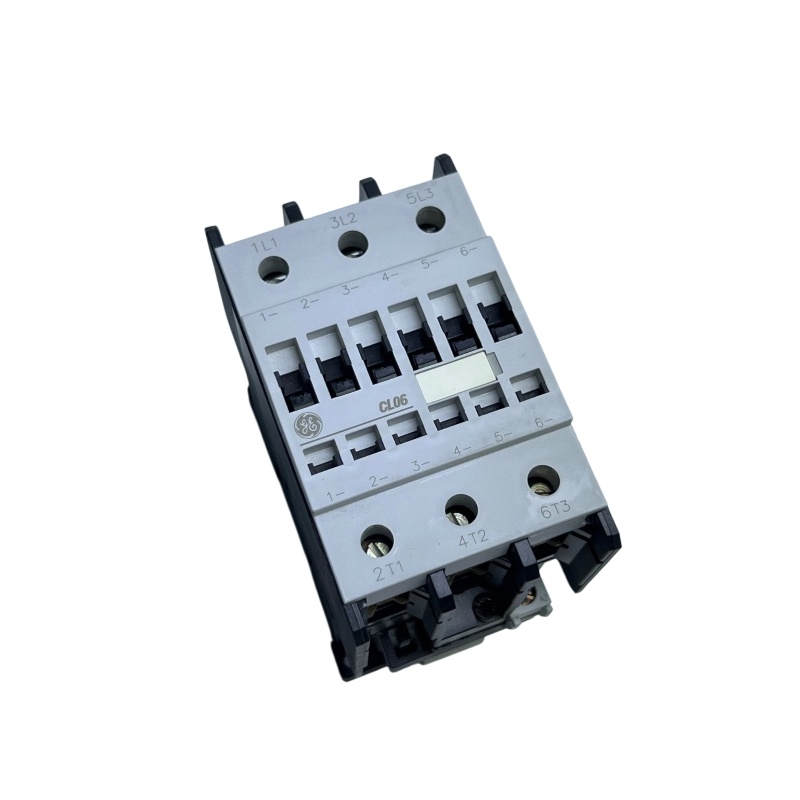

GE CL06A300M1 contactor
GE CL06A300M1
1. Product Overview
2. Technical Parameters
|
Item
|
Value
|
|---|---|
|
Model
|
CL06A300M1
|
|
Coil Voltage
|
90V DC (Estimated)
|
|
Rated Current
|
50A (Estimated)
|
3. Product Features
3.1 Confirmed Features
- General-Purpose Design: Optimized for conventional industrial control scenarios with strong universal applicability.
- Compact Structure: Adopts a miniature contactor design with a compact overall structure, enabling convenient and flexible installation.
- DC Operation Mode: Equipped with a DC control coil for stable and reliable operation.
3.2 Features To Be Confirmed
- Insulation class
- Ingress Protection (IP) rating
- Mechanical and electrical service life
- Contact configuration form
4. Structure and Composition
- Electromagnetic Drive System: Core functional components including coils and iron cores to realize contact switching actions.
- Contact System: Equipped with main contacts to connect and disconnect load circuits stably.
- Arc Extinguishing System: Effectively eliminates electric arcs generated during contact breaking to protect circuits and ensure operational safety.
- Outer Casing: Provides structural support and comprehensive protection for internal components against external environmental interference.
5. Application Fields
|
Application Field
|
Description
|
|---|---|
|
Industrial Control
|
Motor control, equipment start-stop and logic control
|
|
Power Distribution
|
Switch control for power supply loops
|
|
General Automation Systems
|
Power management for various automated production and operating equipment
|
|
Communication Equipment
|
DC load circuit control for communication terminal equipment
|
|
Transportation Industry
|
Electrical system control for rail transit, ships and other transportation vehicles
|
6. Installation and Maintenance
6.1 Installation Requirements
- Installation Direction: Install the product strictly in accordance with the standard specified direction to ensure optimal operating performance.
- Environmental Avoidance: Do not install the product near strong magnetic field sources (such as transformers, permanent magnets) or high-temperature heating objects to avoid performance degradation and component damage.
- Operating Temperature: The applicable working ambient temperature ranges from -40°C to +85°C.
- Humidity Range: The applicable working ambient humidity is 20%-85% RH or 5%-85% RH (non-condensing).
- Protection Standard: The product protection level complies with relevant IEC IP rating standards.
6.2 Maintenance Guidelines
- Regular Inspection: Periodically check the contacts for ablation, wear and aging signs to prevent poor contact.
- Fastening Check: Regularly verify that all terminal screws are firmly tightened to avoid loose wiring and heat generation.
- Cleaning Maintenance: Keep the product exterior clean and free of dust, debris and corrosive deposits to ensure heat dissipation and normal operation.
- Insulation Detection: Regularly test the product’s insulation resistance to ensure it meets safety standards and avoid insulation failure risks.
————————————————————————————————————-
