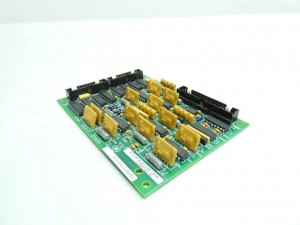

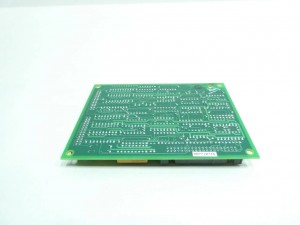

GE DS200DCPAG1ACB

GE DS200DCPAG1ACB is a high-reliability control module launched by General Electric (GE) for the industrial automation field. It is powered by 24V DC and specifically designed for process control, data acquisition, and communication applications. With a compact size, the module is suitable for DIN rail or panel mounting. It can operate stably within a wide temperature range (-40℃ ~ +85℃) and has a power consumption of approximately 5W.

Main Technical Specifications

• Supply Voltage: 24V DC
• Operating Temperature: -40℃ ~ +85℃
• Power Consumption: Approximately 5W
• Communication Protocol: Modbus (supports RS-485)
• Dimensions: Approximately 120mm × 80mm × 40mm
• Protection Level: IP20

Product Features

• High Reliability: Modular design with redundant protection, capable of resisting abnormal conditions such as overcurrent, overvoltage, and short circuits.
• Multi-Protocol Compatibility: Built-in Modbus RTU, combined with RS-485 interface, can be easily integrated into existing PLC, DCS, or SCADA systems.
• Compact and Durable: Small size, light weight (approximately 200g), and high-temperature resistant materials make it suitable for harsh industrial sites.
• Easy Installation and Maintenance: Supports quick DIN rail mounting, with clearly marked terminals. Replacement only requires power-off during maintenance.
• Wide Temperature Adaptability: The operating range of -40℃ ~ +85℃ enables reliable operation in extreme environments such as cold chain and thermal processing.

Structure and Composition

• Power Input Module: Responsible for filtering and stabilizing the 24V DC power supply.
• Communication Interface Board: RS-485 port and corresponding optocoupler isolation circuit.
• Processor Unit: Based on PowerPC/ARM microprocessor, implementing Modbus protocol stack and internal logic control.
• I/O Interface: Several digital input/output terminals for on-site signal acquisition and control.
• Heat Dissipation and Protective Enclosure: Metal or high-strength plastic enclosure, providing mechanical protection and cooperating with heat sinks.

Typical Application Areas

• Industrial Automation: Status monitoring and process control of production line equipment.
• Intelligent Buildings: HVAC, lighting, and security linkage in building automation systems.
• Robotics and Machine Tools: Providing motion control commands and real-time feedback.
• Power Systems: Distribution automation, substation monitoring, and power quality management.
• Process Industry: Process parameter acquisition and adjustment in industries such as chemical, metallurgy, food and beverage.

Installation and Maintenance Guidelines

• Pre-installation Inspection: Confirm the supply voltage, terminal labels, and the fixed position of the DIN rail.
• Wiring Specifications: Use shielded twisted pair cables for RS-485 connection. A terminal resistor must be added at the bus end to prevent signal reflection.
• Power-On Test: Perform no-load detection before first power-on. Connect on-site loads only after confirming that the indicator lights are in normal status.
• Regular Inspection: Check the tightness of wiring, dust accumulation on heat sinks, and enclosure sealing every 6 ~ 12 months.
• Fault Diagnosis: The module is equipped with LED indicators. A red light indicates power or communication abnormalities, and a yellow light prompts overheating. Problems can be quickly located by combining system logs.

————————————————————————————————————-
