GE DS200TCTGG1AFF

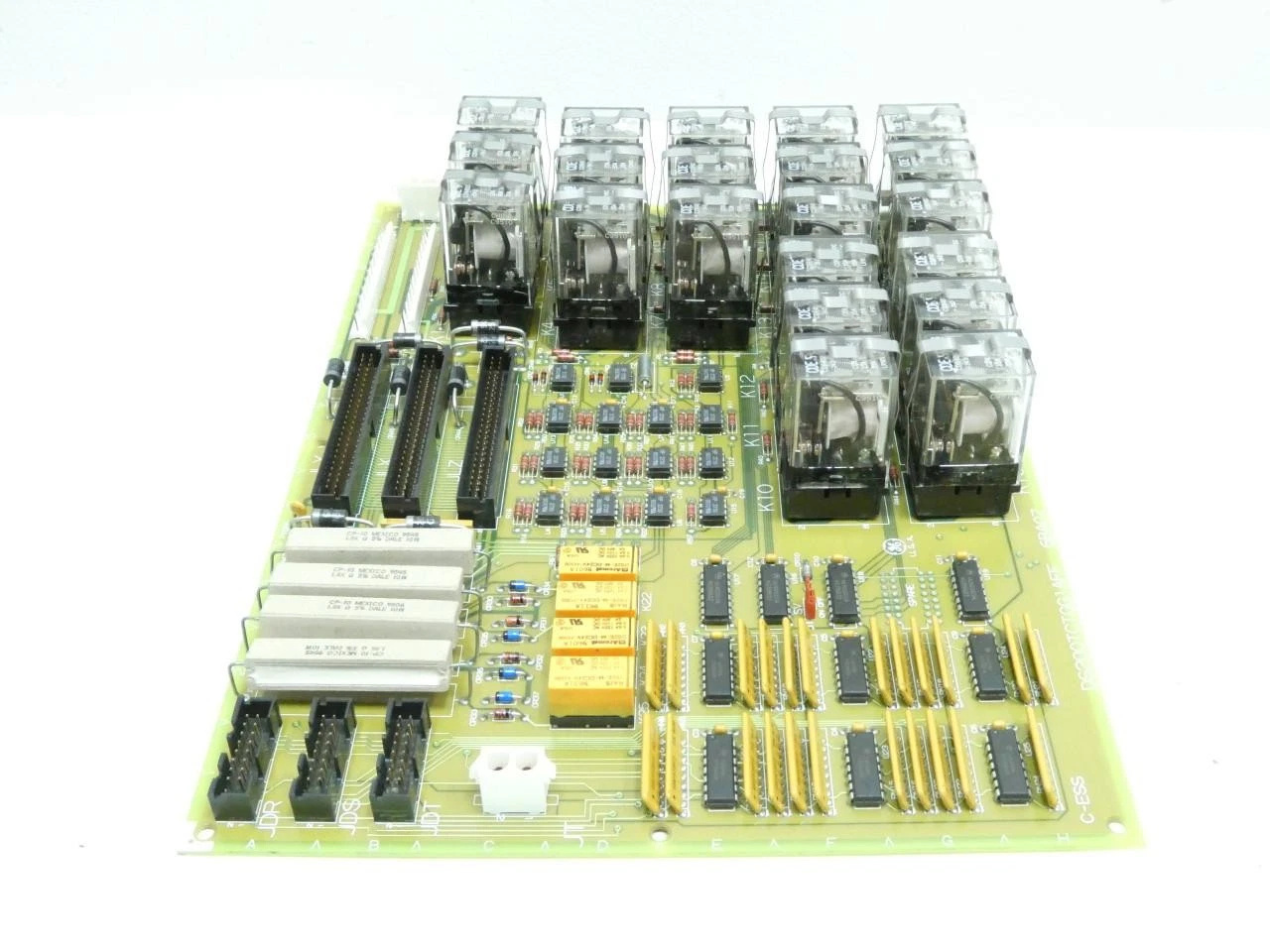

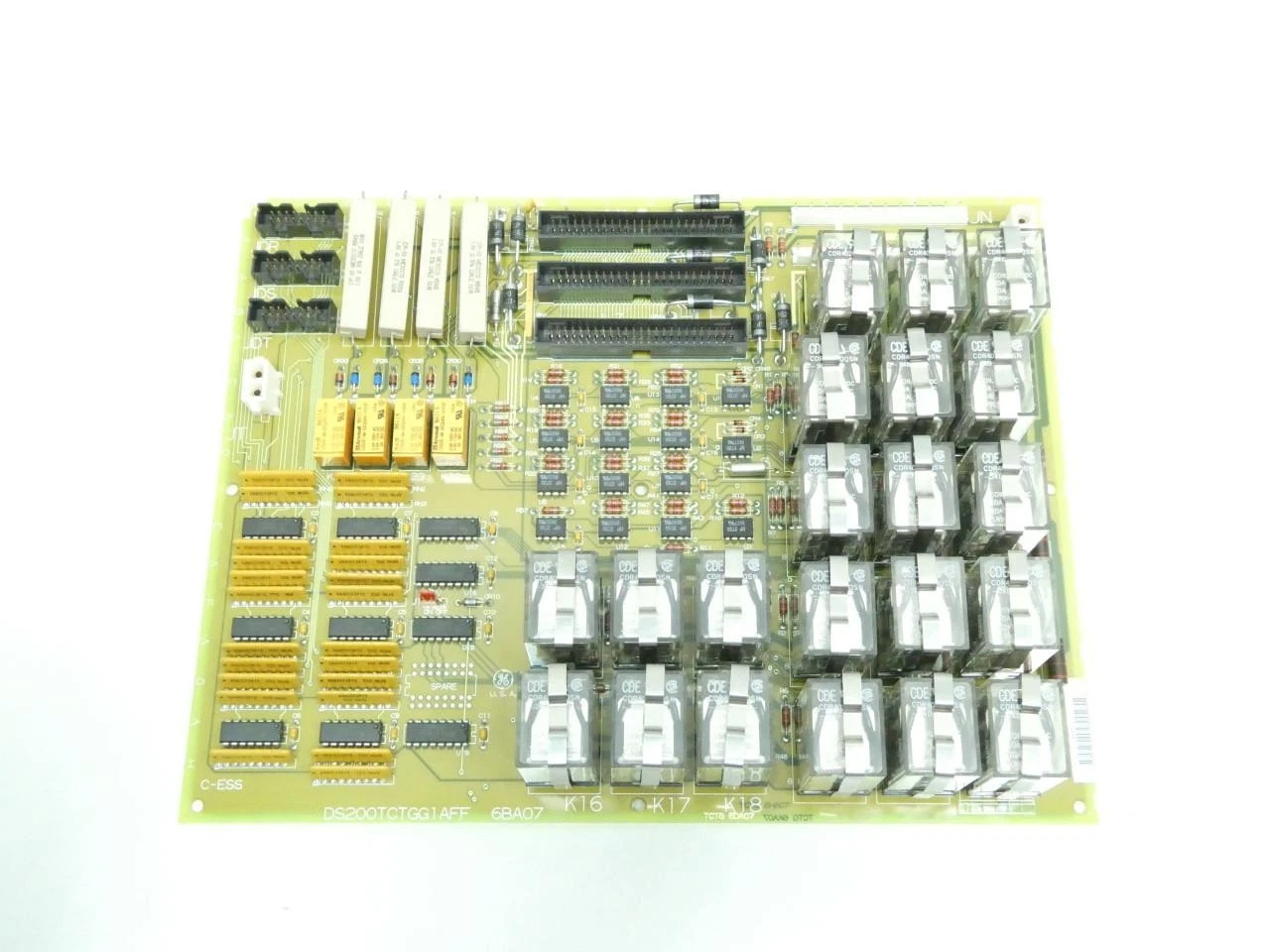

DS200TCTGG1AFF is a Simplex Trip Board in the General Electric (GE) Mark V series. It serves as a critical protection module for the GE Speedtronic Mark V gas turbine control system. By means of plug-in relays, it enables rapid power-off protection for gas turbines or other high-risk processes, ensuring safe shutdown of equipment under abnormal operating conditions.

Main Technical Specifications

• Operating Voltage: 24 V DC
• Power Consumption: Approximately 25 W; Weight: 2.95 lb (≈ 1.34 kg)
• Number of Relays: 21 plug-in relays, equipped with 3 50-pin connectors and 2 12-pin connectors
• Input/Output Interface: Digital I/O, supporting 0-10 V / 4-20 mA analog signals; some models provide communication interfaces such as RS-485 and Ethernet
• Operating Temperature Range: -40 °C ~ +75 °C
• Protection Level: IP65, vibration and shock resistant, compliant with IEC 61508-2 safety standards
• Dimensions/Weight: Approximately 180 mm × 130 mm × 50 mm; Weight: about 0.5 kg (wall-mounted type)

Product Features

• High Reliability: Designed specifically for high-risk industrial environments like gas turbines, featuring fast tripping, vibration resistance, and a wide temperature range.
• Modular Design: Plug-in relays and standardized connectors facilitate quick on-site replacement and maintenance.
• Multi-Functional Protection: Capable of implementing multiple protection logics such as overcurrent, overvoltage, and stalling, supporting user-defined tripping strategies.
• Communication Integration: Some models are equipped with RS-485/Ethernet interfaces, which can be connected to upper computers or SCADA systems to achieve remote monitoring and diagnosis.
• Easy Installation: Wall-mounted structure, fixed with matching metal strips, simple installation steps, and adaptable to various cabinet sizes.

Structure and Composition

• Main Board: A multi-layer PCB that integrates power supply, signal processing, and relay drive circuits.
• Plug-in Relays: 21 independent relay modules, fixed with metal strips for easy plugging and unplugging.
• Connectors: 3 50-pin connectors (marked JLY, JLX, JLZ) and 2 12-pin connectors (marked JN, JM) for power supply, signal, and communication lines.
• Power Module: Provides a 24 V DC regulated power supply, compatible with 90-132 VAC / 180-264 VAC input.
• Housing: A metal protective housing, meeting IP65 protection level, dustproof and waterproof.

Typical Application Fields

• Gas turbine control systems (Mark V series)
• Industrial sites requiring high-speed safe shutdown, such as power plants, petrochemical plants, and natural gas processing facilities
• Electronic circuit protection for high-voltage power systems (frequency converters, DC power supplies, drive devices)
• Critical safety nodes in process control and automation systems

Installation and Maintenance Points

• Pre-Installation Inspection: Confirm that the power voltage, ambient temperature, and humidity meet the specifications; check whether the connectors and relays are in good condition.
• Fixing Metal Strips: After inserting the plug-in relays into the corresponding slots, fix them with metal strips on both sides to prevent falling off due to vibration.
• Wiring Specifications: Connect the 50-pin and 12-pin connectors to the power supply, signal, and communication lines respectively according to the wiring diagram, ensuring firm wiring and clear identification.
• Function Testing: After power-on, use an on-site tester to check the on-off status of each relay and verify whether the tripping logic meets the settings.
• Regular Maintenance: Conduct a visual inspection and function verification every 6-12 months; if poor relay contact or loose metal strips are found, replace or re-fix them in a timely manner.
• Troubleshooting: In case of false tripping or failure to trip, first check whether the power supply and signal lines are abnormal; use an oscilloscope or multimeter to confirm the relay drive voltage; if necessary, replace the faulty relay or contact the supplier for maintenance.

————————————————————————————————————-
