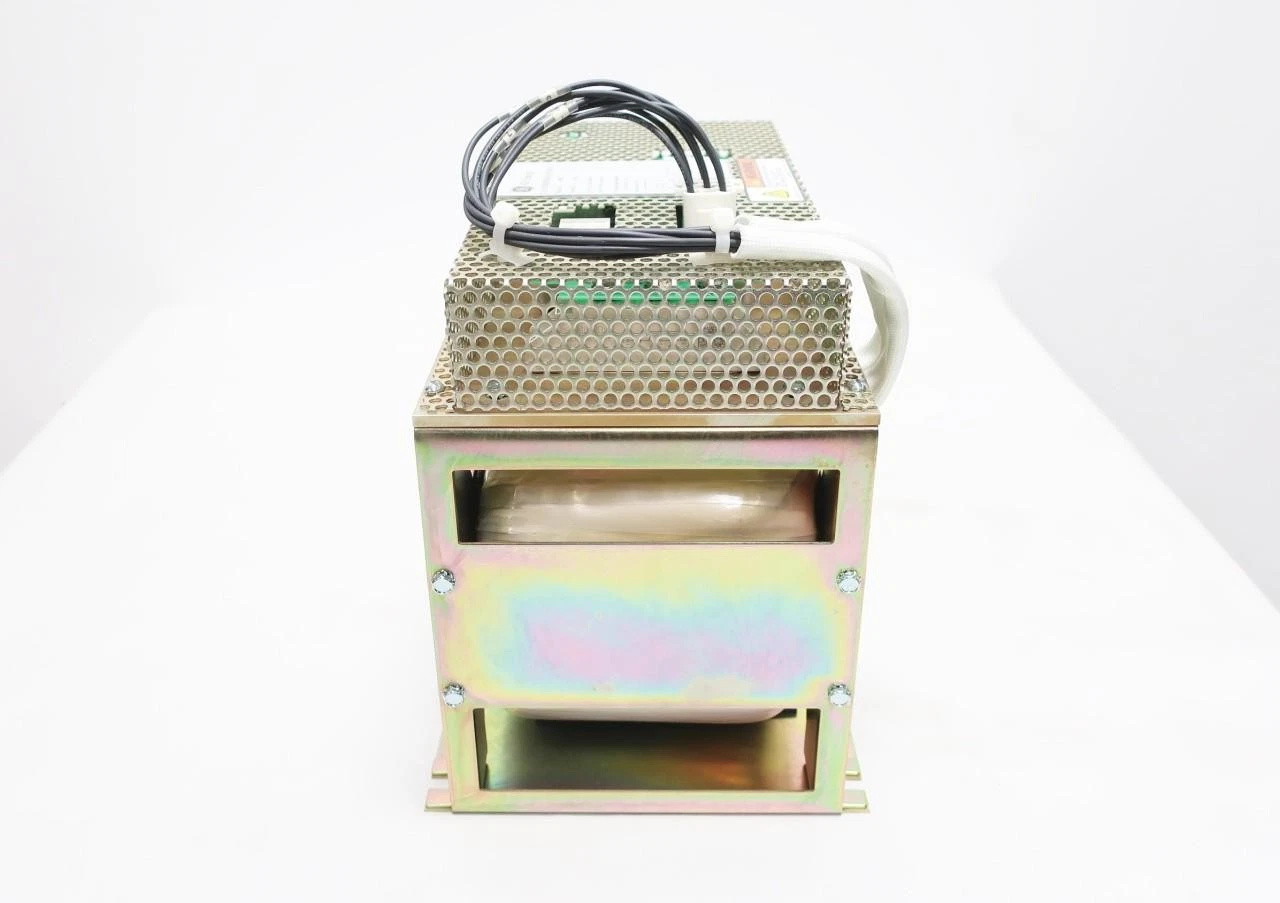

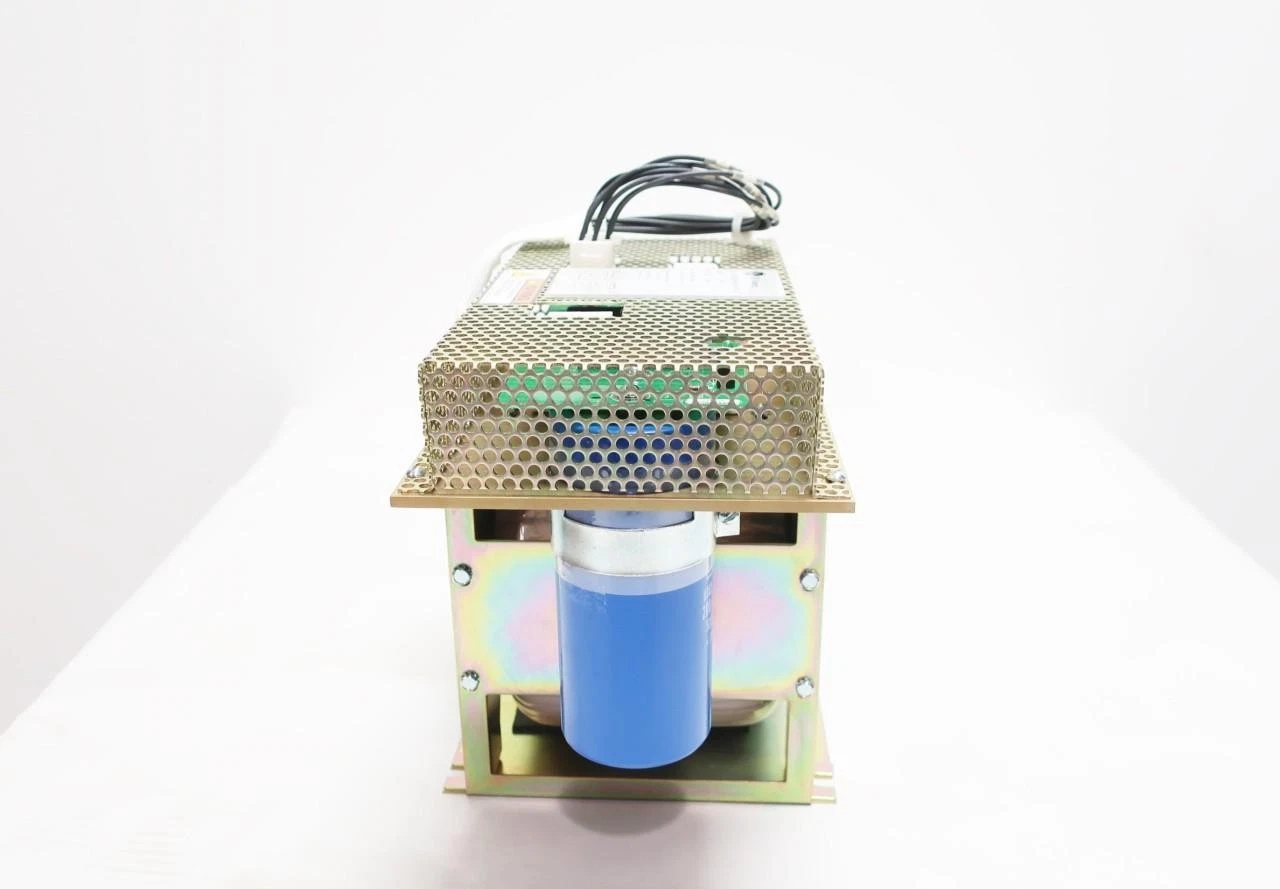

GE DS2020DACAG2

The GE DS2020DACAG2 is an AC-DC power conversion module designed by General Electric (GE) for the Mark V Speedtronic series of gas/steam turbine control systems. It converts 115 V/230 V AC input into 125 V DC output, providing stable power to controllers, gate pulse amplifiers, and other low-voltage DC equipment. Additionally, it features local energy storage to extend the backup time after a power outage.

Key Technical Specifications

Product Features

1. Modular Design: Features a metal mesh structure for easy on-site installation, removal, and maintenance. It can be directly plugged in and out within the cabinet.
2. High Reliability: Redundant design supports parallel operation to enhance system fault tolerance. It is also equipped with multiple protection functions.
3. Strong Compatibility: Offers plug-and-play functionality, serving as a replacement for DS2020DACAG1 and compatible with all Mark V series controllers.
4. Local Energy Storage: Built-in energy storage capacitors provide short-term backup power during outages, extending the system’s “ride-through” time.
5. Parallel Capability: The new model supports parallel connection to achieve higher output current, while parallel use of the old model is not recommended.

Structure and Components

• Enclosure: Grid metal enclosure (compared to the solid enclosure of the previous generation) for better heat dissipation.
• Input Terminals: 115 V/230 V AC terminal blocks with misconnection protection.
• Rectification/Filter Circuit: Bridge rectifier + high-capacity filter capacitor to convert AC to smooth DC.
• Voltage Regulation/Adjustment Module: DC-DC converter that outputs 125 V DC and maintains voltage stability.
• Protection Circuit: Detects and disconnects in case of overcurrent, overvoltage, or short-circuit.
• Indicator Lights: LED status indicators showing normal power supply, fault, or standby status.
• Parallel Interface: Output terminals for parallel connection of multiple modules.

Typical Application Fields

• Gas/steam turbine control systems (GE Mark V Speedtronic)
• Power plant power distribution and control (main control of power stations, excitation systems)
• Petrochemical, offshore platform, and marine electrical systems (requiring reliable 125 V DC power)
• Industrial automation (power supply for PLCs, DCS, and I/O modules)

Installation Key Points

1. Power Connection: Ensure the AC input voltage is consistent (115 V or 230 V) and use power supplies with the same phase to avoid voltage imbalance during parallel operation.
2. Grounding: The module enclosure must be reliably grounded to prevent electric leakage.
3. Heat Dissipation: Maintain ventilation around the front and rear of the metal mesh enclosure. Avoid stacking to prevent poor heat dissipation.
4. Parallel Connection: If parallel connection is needed to increase current, use dedicated parallel terminals and ensure the input voltage of all parallel modules is consistent.
5. Indicator Check: After installation, confirm the LED displays normally (green/blue indicates normal power supply).

Maintenance Recommendations

1. Regular Inspection: Check the tightness of input/output terminals, wiring integrity, and indicator status every 6 months.
2. Cooling Port Cleaning: Prevent dust accumulation from affecting heat dissipation.
3. Function Testing: Measure the output voltage/current during shutdown maintenance windows to confirm it is within the rated range.
4. Replacement Cycle: It is recommended to replace the module every 5 years to prevent output fluctuations caused by internal capacitor aging.
5. Troubleshooting: If the indicator shows a fault, first check whether the overcurrent/overvoltage protection has been triggered. Replace the corresponding module if necessary.

————————————————————————————————————-
