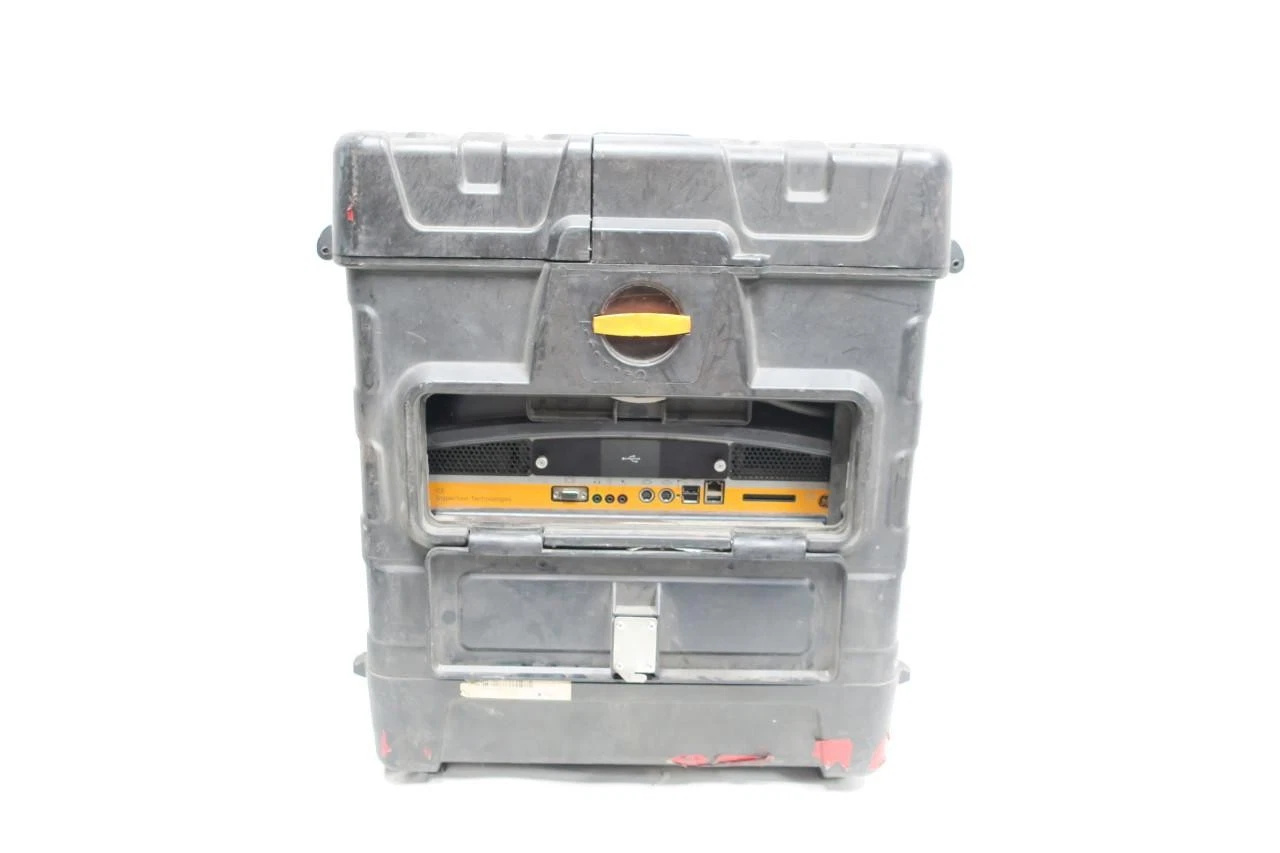

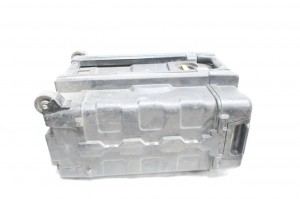

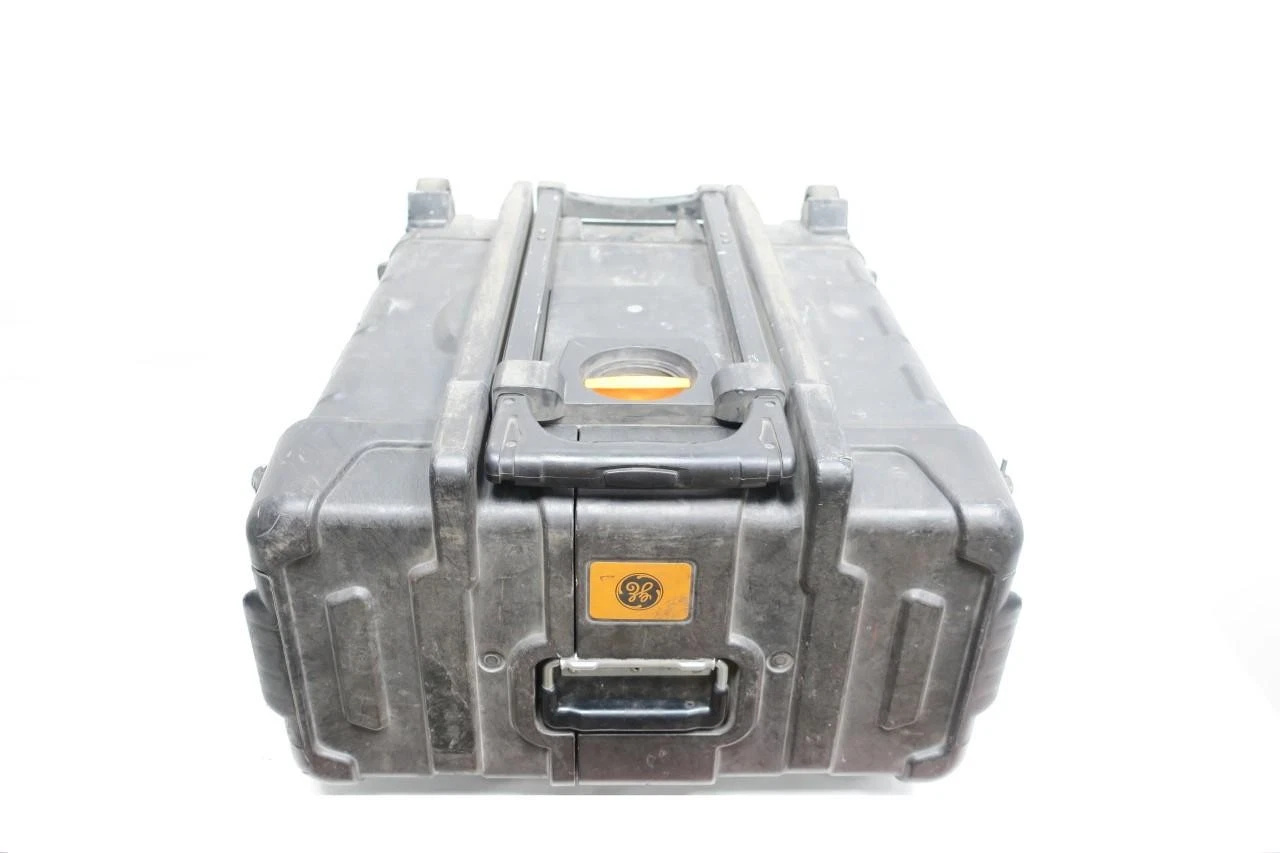

GE EVEREST XLG3

The Everest XLG3 is the third – generation handheld industrial video borescope system launched by GE Inspection Technologies. It is specifically designed for Remote Visual Inspection (RVI) in narrow, dark, and harsh environments.

Key Parameters (Core Technical Specifications)

• Operating Power Supply: 100 – 240 V AC / 50 – 60 Hz (or 11 – 16 V DC power supply). The maximum power is approximately 300 W, and the regular power consumption is about 150 W.
• UPS Battery: Optional 1 – hour or 2 – hour battery life, supporting continuous operation when there is no external power supply on – site.
• Display Screen: A wide – viewing – angle VGA color LCD with a shock – proof structure to adapt to sudden movements.
• Probe Diameter: Multiple specifications such as 6 mm, 5 mm, and 8.4 mm, enabling quick replacement (QuickChange™).
• Probe Length: 2 m – 9.6 m (optional). The longest 9.6 m probe uses an 8 mm diameter pipeline.
• Illumination: Double light output with high – brightness HID/LED light sources, enhancing visibility in large spaces.
• Waterproof/Dustproof: The probe can withstand a water pressure of 1 bar (approximately 10 m water depth), and its protection level meets the requirements of industrial sites.
• Operating Temperature: -20 °C ~ +46 °C (for the chassis) and -25 °C ~ +80 °C (for the probe).
• Dimensions and Weight: The standard chassis measures 54.6 × 49.5 × 32.0 cm. The total weight of the complete set (including the chassis) is approximately 21.8 kg, and it is about 10.9 kg without the chassis.

Product Features

• Extreme Portability: Equipped with a full – aluminum chassis, a polycarbonate shell, and built – in rubber shock absorbers, it is easy for a single person to carry and quickly deploy on – site.
• High – Strength Probe: The titanium alloy camera shell has 8 times higher strength. It is equipped with laser – welded gooseneck joints and double – layer tungsten wire braided protective tubes, providing resistance to pressure and wear.
• Double Illumination: The light output is twice that of the previous generation, significantly improving visibility in dark areas of large spaces.
• Modular Probe System: The QuickChange™ technology enables quick switching of probe diameter, length, and function to meet various inspection needs.
• Long – Term Power Supply: The optional UPS battery provides 1 – 2 hours of continuous operation, suitable for long – term inspections in confined spaces.
• Shock – Proof Display: The color LCD has a shock – proof structure, which can maintain image stability in environments with sudden impacts or vibrations.
• Multi – Environment Adaptability: With a wide operating temperature range, resistance to water pressure and impact, it is suitable for on – site inspections in industries such as electric power, aerospace, petrochemical, automotive, and manufacturing.

Typical Application Fields

• Electric Power Industry: Inspection of the interiors of boilers, gas turbines, steam pipelines, and gearboxes of wind turbines.
• Aerospace Industry: Detection of internal defects in engine combustion chambers, turbine blades, and structures.
• Petrochemical Industry: Inspection of internal corrosion and scaling in reaction kettles, heat exchangers, and pipelines.
• Automotive Manufacturing: Visual inspection of the interiors of engine blocks and transmission systems.
• Processing and Manufacturing Industry: Evaluation of the internal quality of molds, machine tool guide rails, and welded joints.

Installation and Maintenance Points

On – Site Deployment

1. Place the main unit in a stable and well – ventilated location to ensure that the heat dissipation holes are not blocked.
2. If it needs to be used in a narrow space, the side cover of the chassis can be removed, and the unit can be moved using the handles or wheels.
3. After connecting the UPS battery or external power supply, check whether the power indicator light is normal.

Probe Assembly

1. Use the QuickChange™ interface to quickly snap the probe of the required diameter and length into the storage reel.
2. Ensure that the light source at the end of the probe is aligned with the camera to prevent dust from entering the optical system.

Daily Inspection

1. Before each use, check whether the LCD screen, buttons, and joystick are flexible. If used in an environment below 0 °C, the LCD needs to be preheated.
2. Check whether the probe shell has scratches and whether the welding points are loose. The waterproof joints should be kept dry.
3. When the battery power is lower than 20%, replace or charge the battery in a timely manner to avoid power failure during key inspections.

Maintenance

1. Regularly clean the LCD and shell with a soft dry cloth, and avoid using corrosive cleaning agents.
2. Use special optical cleaning paper or an air blower to remove dust from the optical components of the probe.
3. Conduct a full – machine calibration every 6 months to check the light source intensity, camera focus, and image noise level.
4. If abnormal internal electronic components or aging shock – proof rubber are found, contact an authorized service center to replace the parts.

Safety Precautions

1. When working in high – temperature or high – pressure environments, be sure to wear protective gloves and goggles.
2. Before the probe enters underwater or humid environments, confirm that the waterproof level meets the on – site requirements (≥1 bar).
3. If abnormal noise or vibration occurs during use, stop the operation immediately and check the mechanical connections.

————————————————————————————————————-
