GE IS200ESYSH1A

1. Product Overview

2. Technical Specifications

3. Product Features

• Multi-functional Interface: Supports comprehensive signal processing, including PT and CT signal inputs, general and trip relay outputs, analog signal input and output, and digital control input, meeting diverse industrial control requirements.
• Built-in Isolation Transformer: Integrated isolation transformer provides reliable electrical isolation for current measurement and generator voltage signals, effectively avoiding signal interference and improving system stability.
• High Reliability: Adopts industrial-grade circuit design and high-quality components, featuring strong stability and low failure rate, suitable for long-term continuous operation in harsh industrial environments.
• Flexible Wiring: Equipped with onboard terminal blocks (usually HSSL or HSLA type), enabling convenient and fast on-site wiring and later maintenance.
• Integrated Watchdog Timer: Realizes automatic system fault detection and intelligent reset, effectively preventing system crash and ensuring the safe and stable operation of key industrial control applications.

4. Structure and Composition

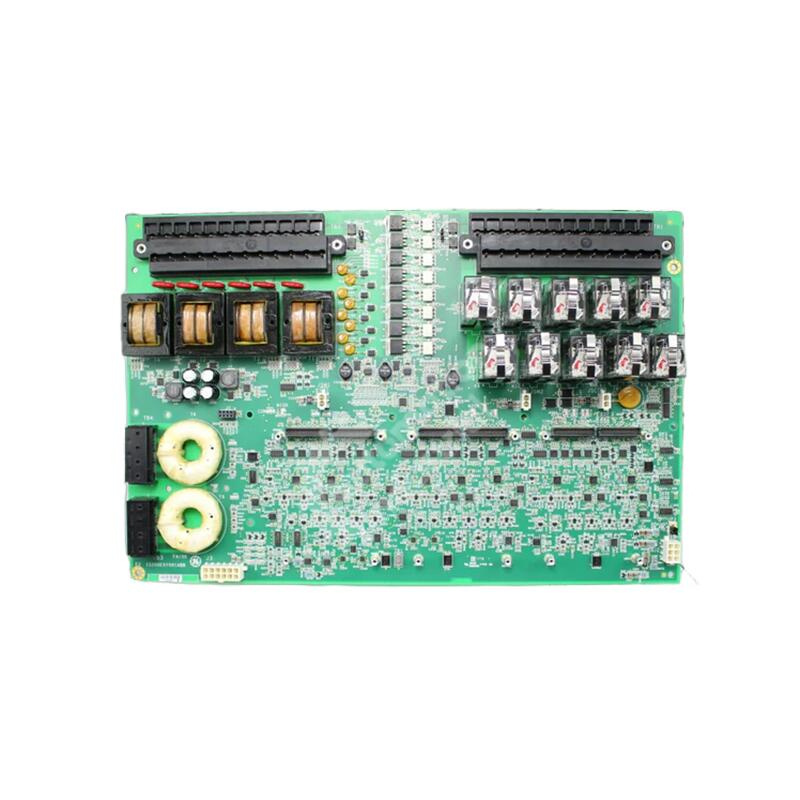

• Main Circuit Board: Adopts industrial-grade System I/O TMR Printed Circuit Board (PCB), which is a standard core component of GE industrial system products with stable performance and strong compatibility.
• Isolation Transformer: Built into the board, it provides professional electrical isolation for generator voltage monitoring and current measurement circuits to protect subsequent control equipment.
• Terminal Board Interface: The external wiring interface relies on the onboard terminal block of the ESYS board, with mainstream compatible models including HSSL and HSLA terminal blocks.
• Channel Configuration: Standard configuration includes 16 universal I/O channels and 4 TMR channels with triple modular redundancy architecture, which significantly improves system fault tolerance.
• Optional RTD Version: Customizable built-in RTD (Resistance Temperature Detector) terminal block version is available for connecting external temperature sensors to realize equipment temperature monitoring functions.

5. Application Fields

5.1 Core Application Scenarios

• Power System: Applied to generator excitation control and protection systems, responsible for collecting and processing generator PT voltage signals and CT current signals to realize precise regulation and safety protection of generator excitation.
• Turbine Control: Compatible with Mark VI turbine control systems, serving as an important signal acquisition and transmission unit for turbine operation control.

5.2 Industry Coverage

6. Installation and Maintenance

6.1 Installation Requirements

• Terminal Connection: On-site wiring is completed through onboard HSSL or HSLA terminal blocks, with standardized wiring specifications to ensure signal transmission accuracy.
• Anti-static Measures: The board is an electrostatic-sensitive component. Operators must wear anti-static gloves during installation and maintenance to avoid direct contact with the circuit and components to prevent electrostatic damage.
• Storage Conditions: When not in use, the board shall be stored in a dedicated anti-static storage box and kept in a dry, constant-temperature environment in accordance with official recommended storage specifications.

6.2 Maintenance Guidelines

• Functional Testing: All products undergo strict factory testing to ensure complete functional integrity and qualified performance before delivery.
• Fault Diagnosis: Supports rapid fault testing and professional diagnosis, facilitating quick troubleshooting and reducing equipment downtime.
• Refurbishment Service: Provides professional board refurbishment services, including aging component replacement, TIL modification, reflow soldering, surface cleaning and anti-rust treatment, to effectively extend the service life of the board.
• Quality Assurance: All refurbished products will pass comprehensive functional verification tests to achieve 100% operational reliability.
• Spare Parts Supply: Adequate inventory of brand-new original and rebuilt spare parts is available to support fast delivery and meet customer emergency replacement needs.
