GE IS200TVBAH2A IS200TVBAH2ACC Circuit Board Cleaning
GE IS200TVBAH2A IS200TVBAH2ACC
1. Product Overview

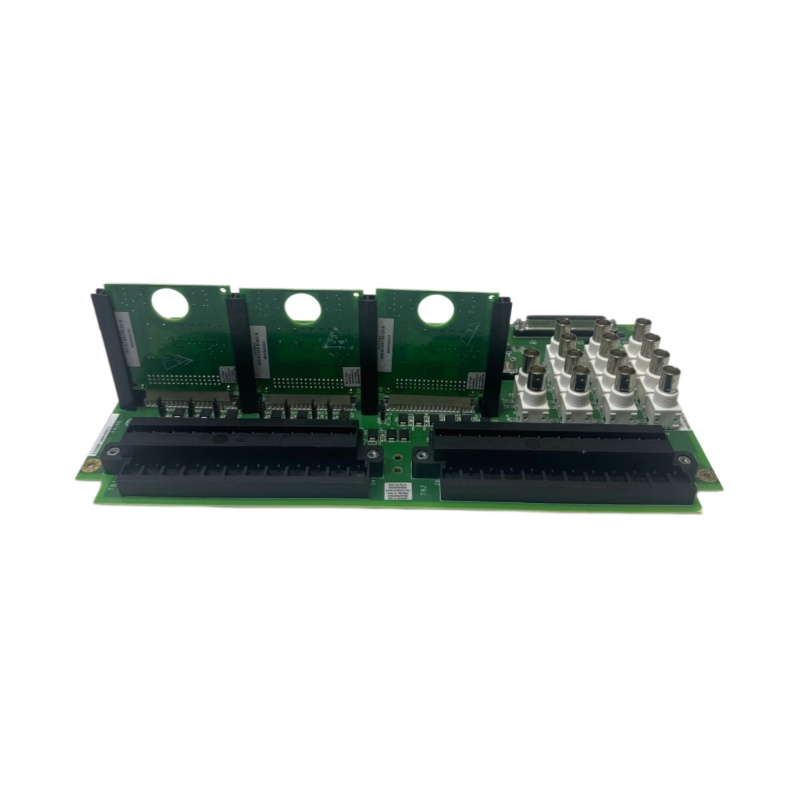

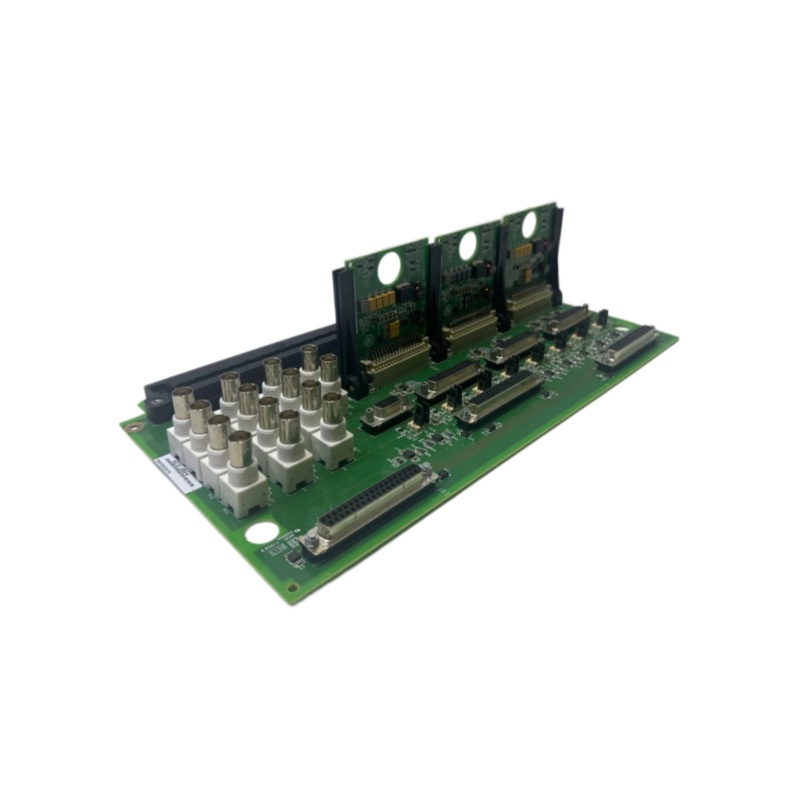

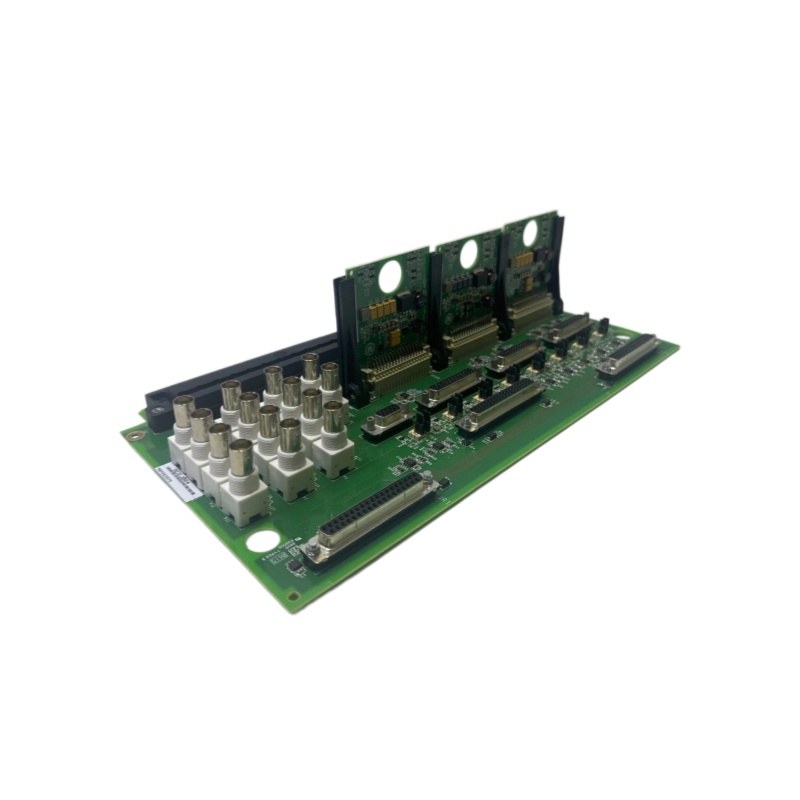

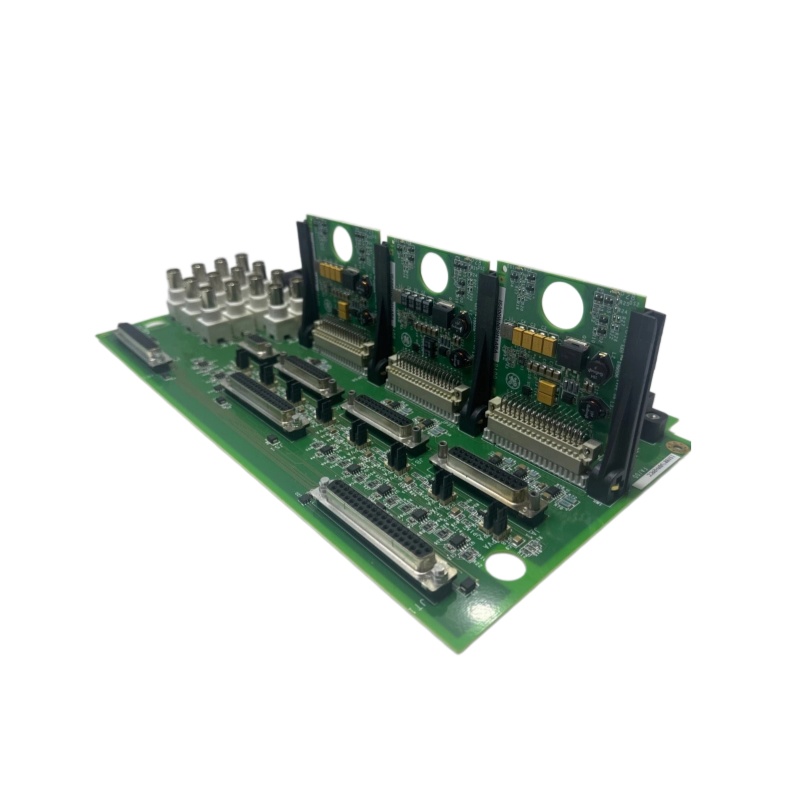

The IS200TVBAH2A is a printed circuit board (PCB) developed by General Electric (GE) for the Mark VIe Speedtronic turbine control system, serving as a Vibration Input Terminal Board. As a core component of the GE Speedtronic series, it cooperates with PVIB/YVIB I/O modules and acts as a professional signal interface board for industrial turbine control systems.
The IS200TVBAH2ACC is also a vibration input terminal board (vibration monitoring card) in the GE Mark VI series, specially designed for the acquisition and real-time monitoring of mechanical vibration data of industrial equipment.
2. Product Features
2.1 Functional Features
- Receives and processes vibration signals transmitted by various vibration sensors
- Provides effective Electromagnetic Interference (EMI) protection and signal suppression to ensure stable signal transmission
- Supports open-circuit identification through pull-up bias coupled signal technology
- Enables real-time monitoring of equipment vibration status to timely capture abnormal vibration conditions
2.2 Design Features
- High Reliability: Adopts industrial-grade electronic components, with strong environmental adaptability, suitable for harsh industrial production environments
- Modular Design: Standard modular structure simplifies on-site installation, daily inspection and later maintenance work
- Compact Size: Optimized structural design occupies less installation space, saving industrial cabinet layout space
- Multi-channel Support: Supports simultaneous vibration signal collection from multiple measuring points to realize multi-point synchronous monitoring
- Strong Compatibility: Perfectly and seamlessly integrated with GE Mark VIe control system, no additional adaptation required
2.3 Safety Features
- Built-in professional safety protection functions to effectively prevent industrial operation accidents
- Provides dual safety protection for industrial production equipment and on-site operating personnel
- Fully compliant with international mainstream industrial safety standards and industry regulatory requirements
3. Parameters and Specifications
3.1 IS200TVBAH2A Parameters
- Series: Mark VI / Mark VIe IS200
- Function: Vibration Input Terminal Board
- Supported Sensors: Seismic (velocity) probes, preamplifiers, tachometers, accelerometer probes
- Connector: 37-pin connector
- Output: 14 buffered outputs, 8 vibration probe channels, maximum output current of 12mA
- Origin: United States
- Compatibility: Bently-Nevada 3500 monitoring system, Velomitors, Proximitors, accelerometers, seismic probes
3.2 IS200TVBAH2ACC Parameters
- Series: Mark VI / Mark VIe IS200
- Type: Vibration Monitoring Card / Vibration Input Terminal Board
- Channel Quantity: 4 channels, 16 channels or 32 channels (data varies by official sources)
- Measurement Range: ±5g or 4-20mA (data varies by official sources)
- Resolution: 24-bit (partial official data)
- Sampling Rate: Up to 10 kHz (partial official data)
- Sensor Type: IEPE accelerometer
- Power Supply Voltage: 24V DC (confirmed by multiple authoritative sources)
- Power Consumption: 5-10 Watts
- Operating Temperature: -40°C to +85°C / -40°C to +70°C (different recorded standards)
- Storage Temperature: -40°C to +85°C
- Humidity Range: 5% to 95% (non-condensing)
- Ingress Protection Rating: IP65 / IP20 (data varies by official sources)
3.3 Dimensional and Weight Differences
- Source A: Dimension 13.39in × 8.5in × 2.17in, Weight 2.2lbs
- Source B: Dimension 229mm × 127mm × 64mm, Weight 5.4kg
- Source C: Dimension 160mm × 110mm × 40mm, Weight 0.5kg
- Source D: Dimension 22.5mm × 100mm × 60mm, Weight 0.2kg
Note: Due to inconsistent parameter data from different information sources, all technical parameters shall be subject to the official GE technical manual.
4. Structure and Composition
4.1 Terminal Block
Equipped with standard input and output terminals, used for stable connection and signal transmission between vibration sensors and the main control system.
4.2 Connector
Comes with a dedicated 37-pin connector, which is used for docking and communication with the main controller and other functional modules of the control system.
4.3 Circuit Board
- Integrated professional circuits for signal acquisition, processing and conversion to realize automatic processing of vibration signals
- Adopts multi-layer PCB design, with built-in high-precision SMD components to improve circuit stability and integration
- Partial models are equipped with detachable connectors for convenient module replacement and maintenance
- Equipped with vertically paired relays and contactors to ensure stable circuit switching
- Built-in precision resistors, potentiometers and metal jumper pins for circuit debugging and parameter calibration
- High-performance integrated circuits to support high-speed signal operation and data processing
4.4 Installation Structure
- Adopts standard modular installation structure, with strong adaptability
- Supports DIN rail installation and on-site fixed installation, suitable for various industrial installation scenarios
- Reserved mounting holes at the board corners for firm and convenient fixed installation
————————————————————————————————————-
