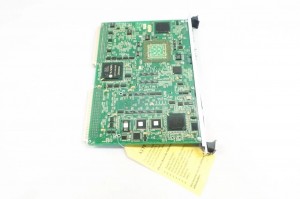

GE IS215UCVEH2AE

The GE IS215UCVEH2AE is an industrial control/sensor interface module launched by General Electric (GE), belonging to the Mark VI / EX2100 series. With a microprocessor as its core, it offers high reliability, real-time performance, and flexible I/O expansion capabilities. It is commonly used in large rotating machinery (such as steam turbines and gas turbines) and various industrial automation systems.

Main Technical Specifications

• Model: IS215UCVEH2AE
• Processor: Intel Celeron 300 MHz
• Memory/Storage: 16 MB – 128 MB Flash, 32 MB DRAM
• Power Supply: 24 V DC
• Communication Interfaces: Multiple industrial networks including 10/100 Mbps Ethernet, RS-485/RS-232, DeviceNet, and Modbus
• I/O: 24 channels of digital I/O (configurable as 16 channels of digital I/O + 8 channels of analog I/O), supporting 12-bit/16-bit analog resolution with a maximum sampling rate of 1 kHz
• Protection Class: IP67; Operating temperature range: –40 °C ~ +85 °C; Storage temperature range: –55 °C ~ +90 °C
• Dimensions: Compliant with VME standards (approximately 233 mm × 173 mm × 25 mm)
• Weight: Approximately 0.5 kg – 1.2 kg

Product Features

• High Reliability: Adopts industrial-grade components and protective design to adapt to harsh environments.
• Real-Time Performance: Supports a real-time operating system with short command response time.
• Modular and Pluggable: Features a VME/PCIe structure, facilitating on-site replacement and expansion.
• Multi-Protocol Compatibility: Compatible with other modules in the GE Mark VI series, supporting multiple fieldbuses such as Ethernet, CAN, and DeviceNet.
• Flexible Configuration: Allows customization of I/O quantity, input range (±10 V, ±5 V, ±2.5 V, ±20 mA, etc.), and isolation level according to on-site requirements.
• Easy Maintenance: Modular design, standardized interfaces, and diagnostic LEDs with self-test functions reduce downtime.

Structure and Composition

• Main Control Board: Equipped with a processor, memory, Flash, clock, and power management chip.
• I/O Expansion Board: Provides digital/analog input and output terminals, with isolation transformers and filter circuits.
• Communication Interface Card: Includes interface modules for Ethernet, RS-485/RS-232, CAN, etc.
• Heat Dissipation Device: Heat sink or fan (configured based on power consumption) to ensure stable operation in high-temperature environments.
• Chassis/Backplane: A metal chassis compliant with VME standards, providing dust and moisture protection.

Typical Application Fields

• Power Plants: Acquisition and control of key parameters (e.g., speed, temperature, pressure) of steam turbines and gas turbines.
• Petrochemical Industry: Process control and digital monitoring of valves/pumping stations.
• Water Treatment: Sensor interfaces for flow rate, liquid level, pH value, etc.
• Transportation: Equipment monitoring for railway signals and rail transit.
• Industrial Automation Production Lines: I/O expansion and real-time control of robots and CNC machine tools.

Installation and Maintenance Points

Installation

1. Insert the module into a rack slot that meets VME/PCIe specifications, ensuring the backplane is aligned with the card slot.
2. Connect the power cable (24 V DC) and communication cables, and check if the terminal blocks are tightly locked.
3. Select the I/O terminal block according to on-site requirements to ensure the input range matches the sensor.

Debugging

1. After startup, check the power supply, communication, and I/O status via the self-test LEDs.
2. Use the configuration software provided by GE (e.g., Mark VI Configuration Tool) for parameter setting and firmware update.
3. Perform online diagnostics via Ethernet or serial port to confirm normal signal acquisition of each channel.

Daily Maintenance

1. Regularly check if the heat sink is dusty; clean or replace the fan if necessary.
2. Inspect the tightness of terminal connections to prevent loosening due to vibration.
3. Perform firmware updates every 12 months to obtain the latest functions and security patches.
4. In case of a fault, refer to the self-test LED indicator codes to quickly locate the faulty component, and contact the supplier for replacement if necessary.

Safety Precautions

• Ensure the power supply is cut off before operation, and comply with IEC/EN safety specifications.
• When using in high-voltage or strong magnetic field environments, ensure the module’s IP67 protection class remains intact.

————————————————————————————————————-
