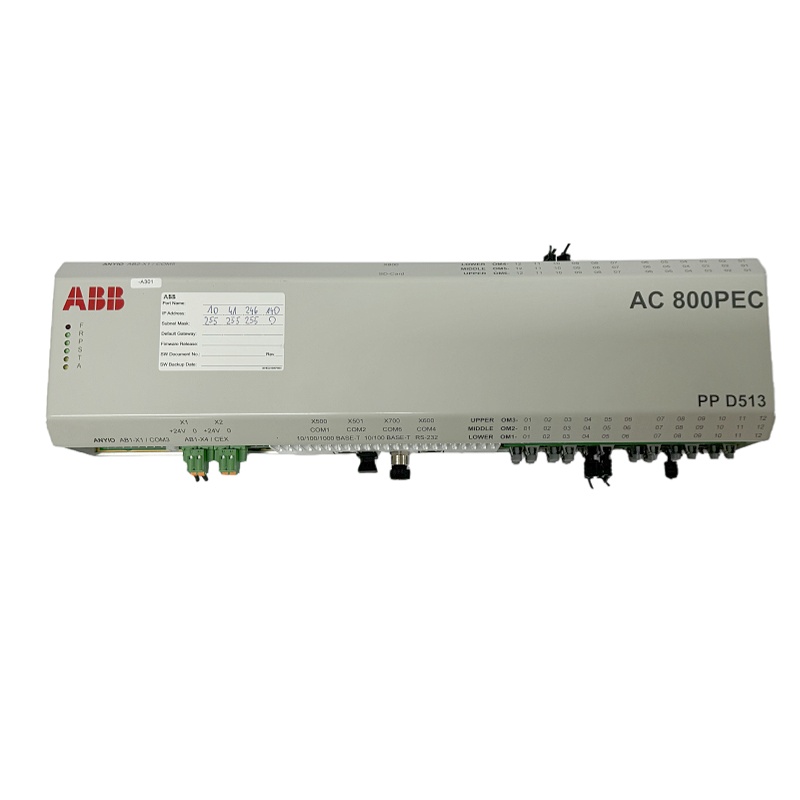

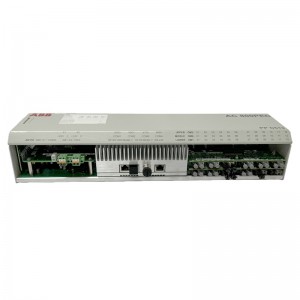

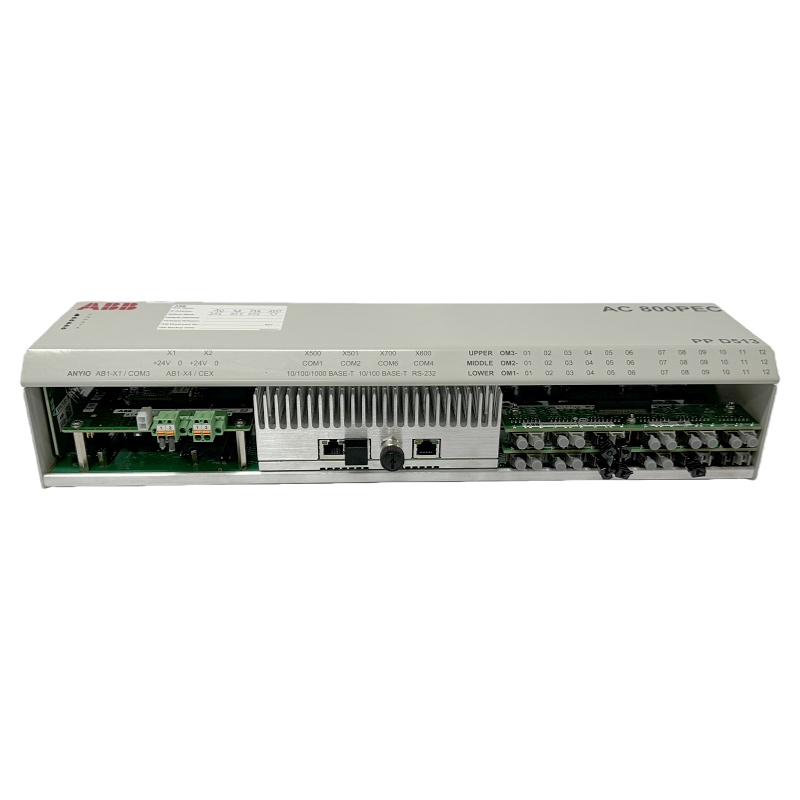

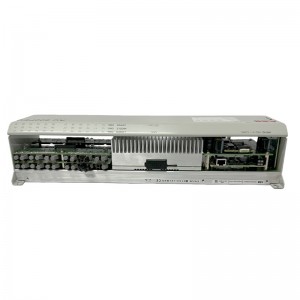

ABB PPD513A0E110110 3BHE039724R0E41 Control Module
ABB PPD513A0E110110 3BHE039724R0E41
Overview
ABB PPD513A0E110110 (model 3BHE039724R0E41) is a high-performance industrial automation control module belonging to the ABB AC 800 PEC series. Designed specifically for critical process automation, it features redundant power supply, hot-swappable capability, and fast switching functions. It can deliver reliable and continuous power supply and control performance in harsh industrial environments.
Parameters
- Power Supply: Input of 110‑120 VAC (wide range of 90‑264 VAC); output of 24 VDC ±0.5% / 10 A (power rating of approximately 240 W)
- Efficiency: ≥ 94%, power factor > 0.98
- Switching Time: < 200 µs, enabling near-zero-interruption power switching
- Reliability: High mean time between failures (MTBF), compliant with SIL 3 standards and 99.999% power availability requirements
- Interfaces: 2× Ethernet, 2× RS‑232, 1× RS‑485, supporting multiple industrial communication protocols such as PROFIBUS DP and Modbus
- I/O: 8 analog inputs, 4 analog outputs, 16 digital inputs, 16 digital outputs
Product Features
- Redundant Power Supply Technology: Dual independent AC power supplies realize load balancing and automatic switching, ensuring uninterrupted power for critical systems.
- High Integration: Integrates power management, processor, rich I/O ports, and multiple communication interfaces within a compact chassis, simplifying system architecture and reducing overall costs.
- Industrial-Grade Reliability: Adopts a design resistant to vibration, shock, and wide temperature ranges, and can withstand electromagnetic interference and power grid fluctuations.
- Hot-Swappable and Fast Switching: Supports on-line replacement of power modules with a switching time of less than 200 µs, facilitating easy maintenance.
- Strong Compatibility: Seamlessly integrates with ABB S800 DCS and 800xA/Symphony Plus platforms, and supports real-time health monitoring and diagnosis.
Structure and Components
- Power Sub-module: Dual AC input, rectification, filtering, and DC output sections.
- Control Processing Unit: Based on AC 800 PEC CPU313, equipped with 2 MB RAM and 4 MB ROM.
- Communication Board: Ethernet, RS‑232/485 interfaces, and PROFIBUS/Modbus adapters.
- I/O Expansion Module: Terminal blocks for analog/digital input and output.
- Chassis and Heat Dissipation System: Metal casing combined with forced air cooling to meet the heat dissipation needs of industrial environments.
Application Fields
- Petrochemical, oil refining, and natural gas processing industries
- Power system and substation automation
- Pharmaceutical and biopharmaceutical production lines
- Mining, excavation, and metallurgical processes
- Water treatment, wastewater treatment, and environmental protection facilities
- Control and monitoring of new energy installations such as wind power and photovoltaic systems
Installation and Maintenance
Installation
It adopts the standard DIN-Rail mounting method and supports hot-swapping. During wiring, it is necessary to confirm the reliability of power phase sequence and grounding.
Commissioning
Parameter configuration is carried out via the Configurator software provided by ABB, and after completion, on-line monitoring can be performed on DCS/PLC systems.
Maintenance
The module is equipped with a self-diagnostic function, and fault indicator lights and system logs help quickly locate problems. It is recommended to conduct a full-function inspection every year and replace aging capacitors or cooling fans.
————————————————————————————————————-
