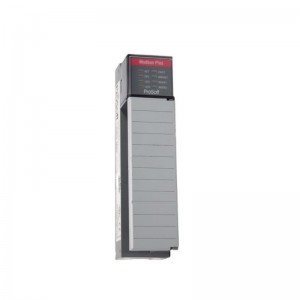

ProSoft ILX69-PBM Communication Module
ProSoft ILX69-PBM
Product Overview:
The ILX69-PBM is a PROFINET IO communication module developed by ProSoft Technology. Its core function is to connect the S7-300 PLC to external networks via the PROFINET bus, enabling high-speed, bidirectional data communication. It is widely deployed in industrial automation scenarios for monitoring systems, data acquisition solutions, and seamless interaction with upper-level devices (PC/HMI).
Core Specifications:
The communication protocol of the ILX69-PBM is PROFINET IO, which supports IRT isochronous real-time mode. It can support up to 32 nodes, and the nodes can be configured for segmentation or allocation as required. The module features a maximum bandwidth of 100 Mbit/s (full-duplex) and supports periodic data transfer with a cycle time as low as 2.5 ms. In terms of power supply, it requires DC 24V (24VDC). As a Communication Module (CM), it is specifically designed for installation in Siemens S7-300 CP (Communication Processor) slots.
Key Features:
The module is equipped with high-efficiency graphic interface data transfer capability; its built-in PBM (Professional Graphic Management) mode is optimized for high-frequency graphic interface data refresh, supporting real-time screen updates for dynamic monitoring. It also boasts superior reliability, as the PROFINET IRT mode ensures ultra-low jitter and high communication stability, making it ideal for time-critical industrial control applications. Easy integration is another advantage—featuring standard DIN rail mounting and full compatibility with Siemens original CP slots, it eliminates the need for additional cable modifications. Additionally, it supports flexible node management, allowing direct single-device connection as well as star/tree network topologies to enable flexible configuration based on on-site network architecture.
Structure and Components:
The ILX69-PBM consists of several key components. The CPU Control Unit is responsible for protocol conversion between PLC data and network communication signals. The PROFINET Interface is an RJ45 port used for connecting to external networks, such as industrial switches, routers, or direct PC connection. The Node Allocation Section includes internal circuitry for assigning PROFINET addresses and managing the node list. Moreover, the module is equipped with Diagnostic LEDs, including dedicated indicators for power, error, and communication status, which facilitate quick on-site fault diagnosis.
Typical Application Areas:
This module is widely used in graphic monitoring systems (HMI), where it enables real-time display of PLC operating status, waveform graphs, and dynamic animations on control room large screens or PC clients. It is also applicable to data acquisition systems, transmitting PLC operational data to SCADA systems or databases for real-time recording and in-depth analysis. In addition, it supports remote diagnostics and maintenance, allowing remote monitoring, alarm notification, and fault diagnosis of PLCs via network connections. It also facilitates upper-level device interaction, enabling data sharing and collaborative control with industrial PCs, robot controllers, and other PLCs.
Installation and Maintenance:
For installation, the module adopts a plug-and-play mounting design with standard DIN rail compatibility, which can be directly inserted into vacant slots of the Siemens S7-300 CP chassis. The power connection requires linking to the DC 24V power supply of the CP chassis, ensuring stable voltage output (most CP chassis are equipped with built-in regulated power supplies). For network connection, standard Cat5e/Cat6 Ethernet cables should be used to connect the module to industrial switches or directly to PCs.
In terms of configuration, hardware configuration involves adding the module in Siemens STEP 7 software and setting the module station number and network parameters. Parameter setting requires configuring PBM parameters (such as update frequency and data block mapping) in TIA Portal or STEP 7 software.
For maintenance, diagnostic functions can be realized by monitoring communication status via on-module LED indicators or PROFINET diagnostic tools; a red LED typically indicates network faults or address conflicts. If compatibility issues arise (such as with new versions of S7-300 or upper-level software), module firmware updates may be required. The module supports hot-swapping, so in case of hardware failure (such as burnout), it can be directly removed and replaced for hassle-free maintenance.
————————————————————————————————————-
