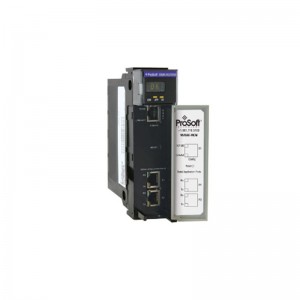

PROSOFT MVI56-MCM Control System Power Module
PROSOFT MVI56-MCM
1. Product Overview
PROSOFT MVI56-MCM is a Modbus communication module specifically designed for the Allen-Bradley (Rockwell Automation) ControlLogix platform. It acts as a “bridge” between ControlLogix PLCs and Modbus devices such as sensors and actuators, enabling seamless data exchange between these two different protocols.
2. Core Specifications
The module comes with specific core parameters that define its operational capabilities. Its power supply requirement is 24V DC, and it supports a maximum communication baud rate of 115200 bps, which is also the commonly used setting in most applications. It boasts a wide operating temperature range from -40℃ to +85℃, making it suitable for various harsh industrial environments. In terms of physical dimensions, the module measures approximately 176mm in length, 100mm in width and 32mm in height, with a weight of around 0.5kg. For connectivity, it is typically equipped with two RJ45 ports that support RS-232, RS-485 and RS-422 communication standards.
3. Key Features
This module is packed with notable product features that enhance its functionality and versatility. It supports dual communication modes, namely Modbus Master and Modbus Slave, allowing it to either actively request data from connected devices or passively respond to data queries. It offers flexible data mapping capabilities, enabling users to directly monitor the module status within the PLC and achieve rapid data mapping and processing through built-in Add-On Instructions (AOI). Safety and reliability are ensured with optocoupler isolation and LED diagnostic indicators, which display real-time communication status and error codes to facilitate quick troubleshooting. Additionally, it has strong compatibility, supporting both Modbus RTU and ASCII protocols and being able to work in conjunction with other protocols like ControlNet and DeviceNet.
4. Structure and Components
The internal structure and components of the MVI56-MCM module are carefully designed to support its core functions. It includes a communication processing chip that is responsible for executing the Modbus protocol stack, ensuring smooth data transmission and protocol conversion. Electrical isolation components are integrated to safeguard the electrical safety between the PLC and external devices, preventing potential electrical interference or damage. A memory component with a CF card slot is provided for storing configuration files and backing up critical data, ensuring that module settings are retained even during power outages. LED indicators are also part of the design, clearly showing the power status, communication status and error status of the module at a glance.
5. Application Areas
Thanks to its robust performance and versatile features, the MVI56-MCM module finds extensive application across multiple industries. In industrial automation, it is widely used for monitoring and controlling equipment on production lines, helping to optimize production processes and improve operational efficiency. In the field of energy management, it plays a key role in collecting operational data from equipment in power systems, supporting effective energy monitoring and management strategies. Within the oil and gas industry, it is deployed to monitor pipelines and processing equipment, ensuring the safe and stable operation of critical infrastructure. It is also suitable for use in metallurgy and chemical industries, where it can control complex chemical processes with high precision and reliability.
6. Installation and Maintenance
The installation and maintenance of the MVI56-MCM module are straightforward and user-friendly. For installation, the module requires a free slot in the ControlLogix chassis, and users should ensure that the module is compatible with the backplane power supply of the PLC, which typically requires a current support of 800 mA. Configuration is carried out via the RSLogix 5000 software, where users can set relevant parameters; the module status can be directly read through the PLC tags, and it supports ladder logic programming for easy integration into existing control systems. For maintenance, regular checks of the LED status lights are recommended to quickly identify any potential issues. If communication failures occur, users should first check the CF card configuration files and network connections. The module supports hot-swappable CF cards, allowing for quick and convenient replacement of configuration files without the need for system shutdown.
————————————————————————————————————-
