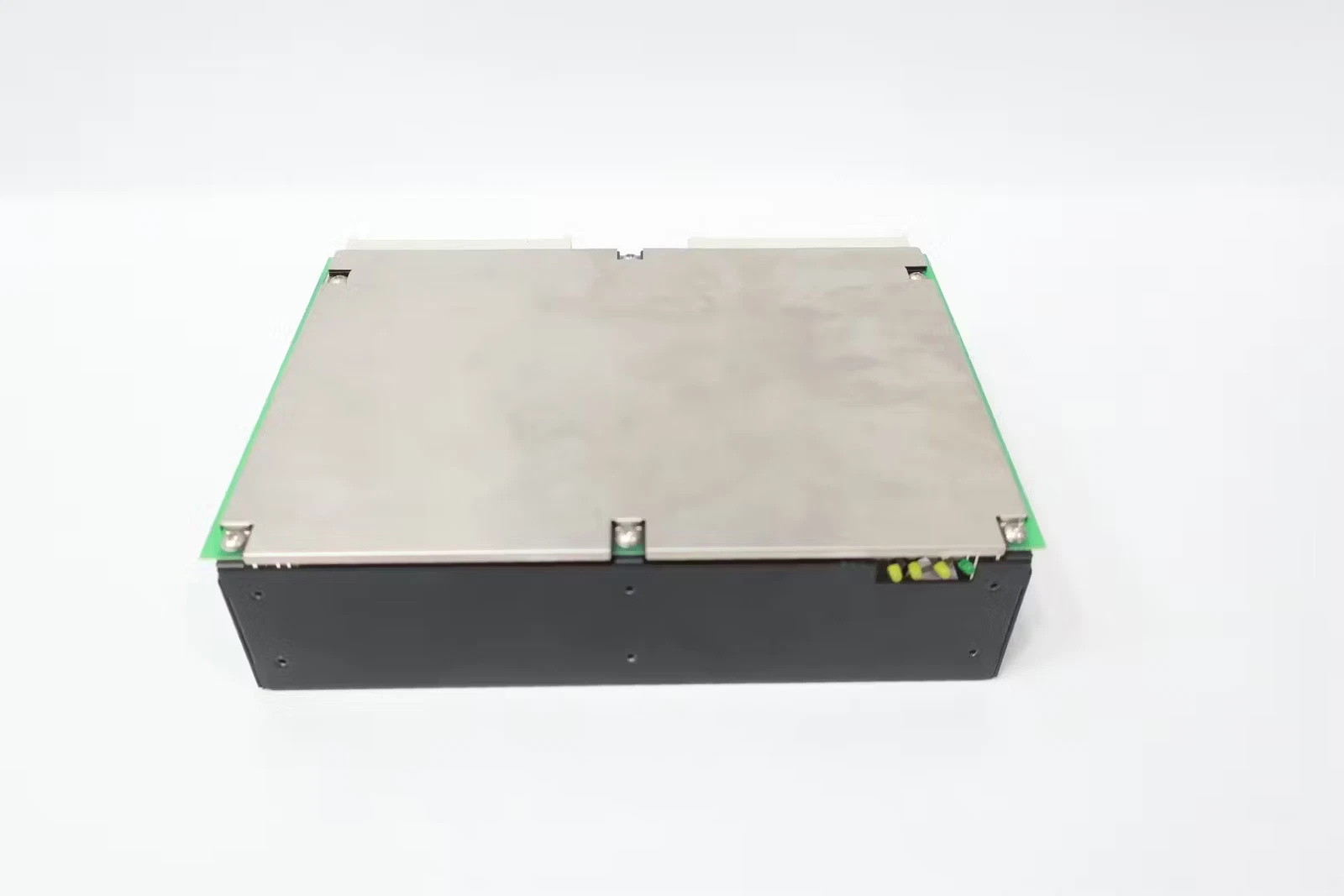

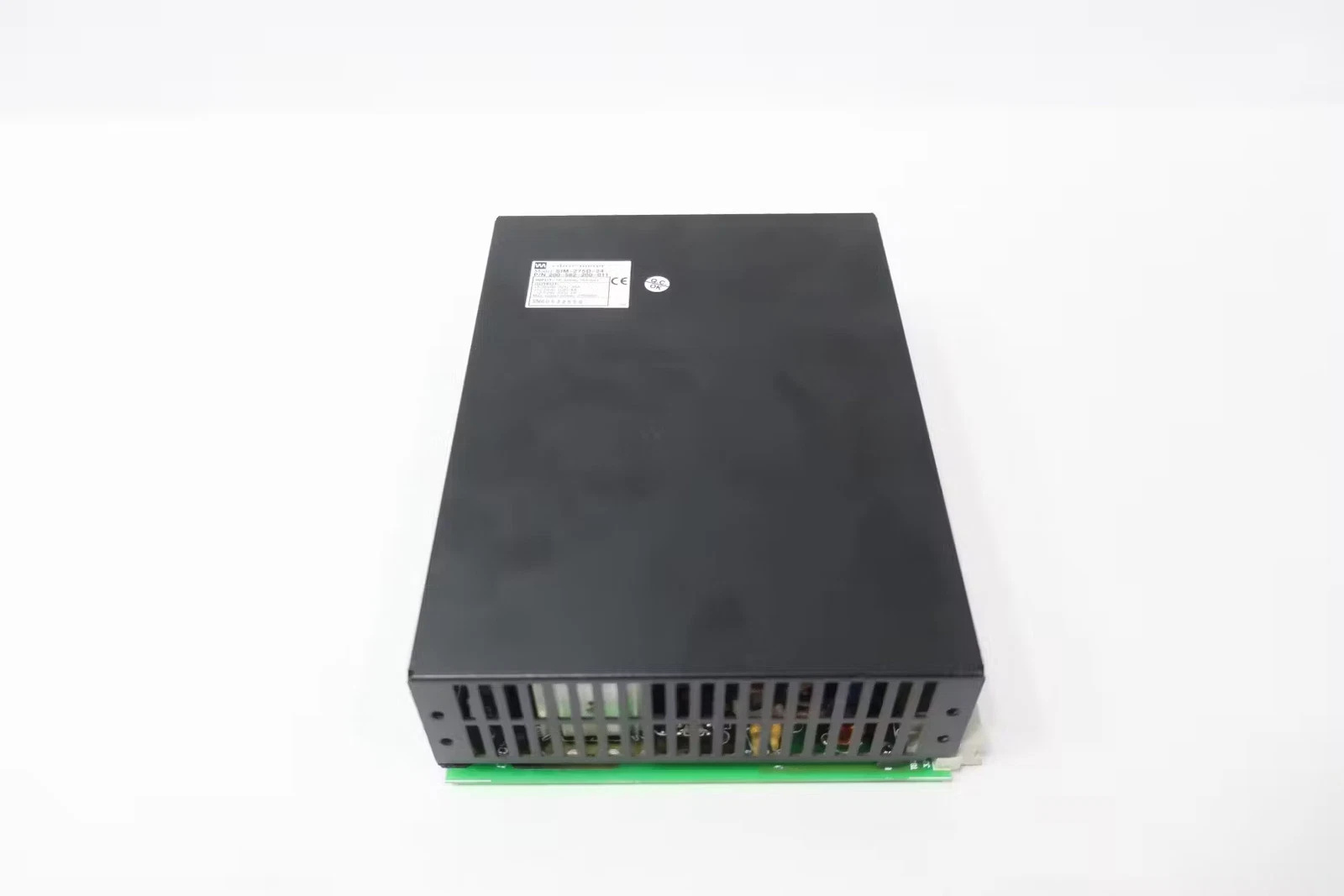

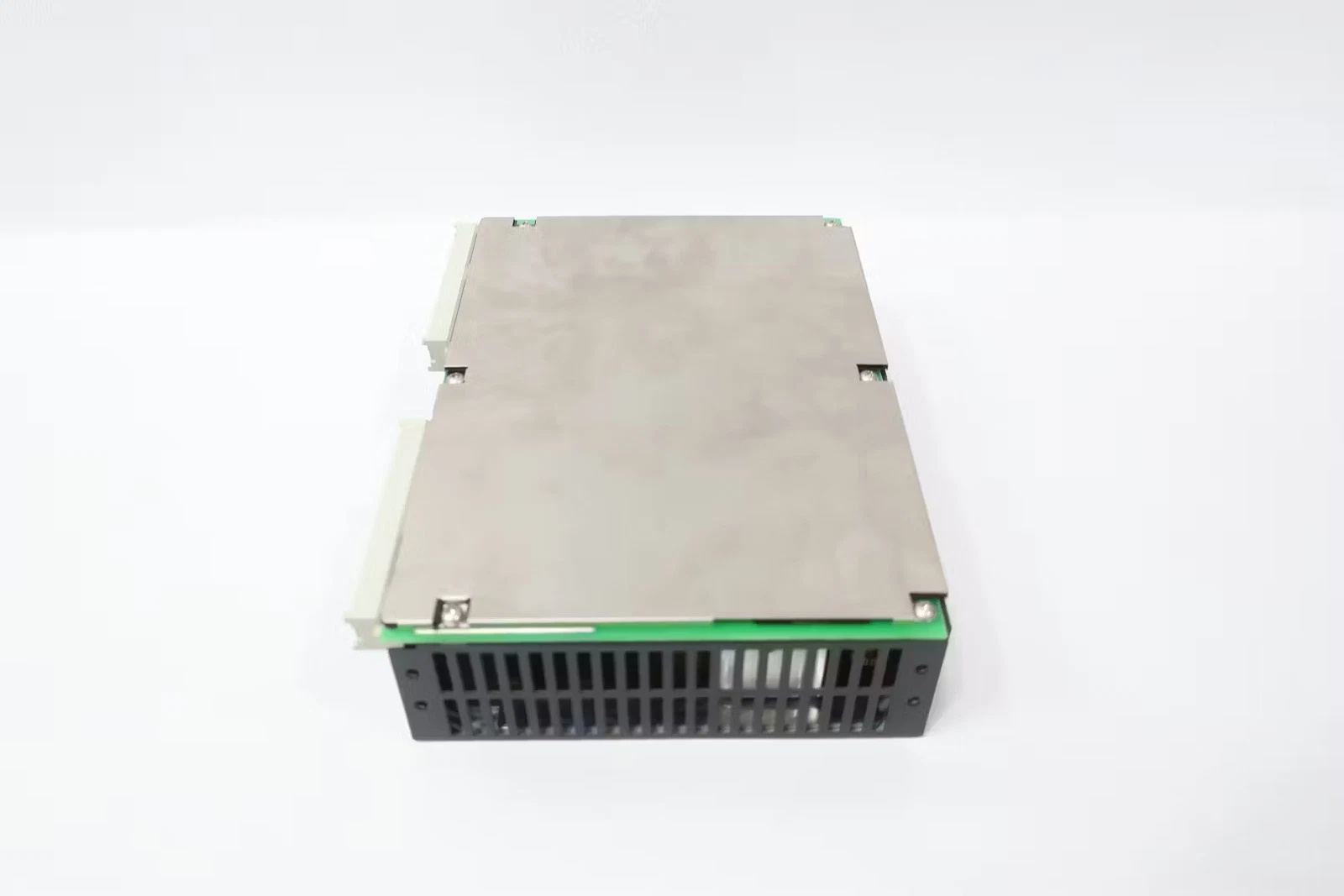

Vibro Meter SIM-275D-24 200-582-200-011 Mainboard Module
Vibro Meter SIM-275D-24 200-582-200-011
The SIM‑275D‑24 200‑582‑200‑011 is a vibration monitoring and control mainboard module in the VIBRO‑METER series. It is specifically designed to provide real-time vibration data collection, analysis, and alarm functions for rotating equipment in industrial settings, such as motors, pumps, and fans.
Key Technical Specifications
- Power Supply Voltage: 24 V DC
- Operating Temperature: -20 °C ~ +60 °C
- Frequency Range: 8 Hz ~ 1 kHz
- Measurement Range: 0 ~ 50 mm/s
- Sensitivity: 20 mV/g
- Protection Class: IP65 (dustproof and waterproof)
- Communication Interfaces: Multi-protocol support including Modbus RTU, EtherNet/IP, PROFINET, RS‑485, and RS‑232
- Input/Output Channels: 4 vibration signal inputs, 2 alarm outputs
- Dimensions/Weight: Approximately 100 mm × 80 mm × 30 mm, weight around 200 g
Product Features
- High-Precision Vibration Measurement: Captures key parameters such as vibration amplitude, frequency, and phase with an accuracy of ±5%.
- Multi-Functional Measurement Modes: Supports multiple measurement types including velocity, acceleration, and displacement.
- Modular Design: Offers flexible expansion based on on-site needs, compatible with various communication interfaces for seamless integration with PLC, DCS, and upper computer systems.
- Real-Time Monitoring and Alarming: Built-in threshold setting and alarm output, suitable for predictive maintenance and fault diagnosis.
- Data Storage and Historical Records: Supports local data caching for later analysis and report generation.
- Rugged and Durable: IP65 protection class and wide operating temperature range ensure adaptability to harsh industrial environments.
Structure and Composition
- Main Control Board: Responsible for data collection, processing, and communication.
- Analog/Digital Input Module: Provides access for multiple vibration sensors (e.g., IEPE, accelerometers).
- Output/Alarm Module: Enables control of relays or digital signals.
- Communication Interface Unit: Includes RS‑485, Ethernet, Modbus, and other interfaces.
- Power Supply Module: Delivers stabilized 24 V DC power.
- Housing: Made of metal or high-strength plastic, compliant with IP65 standards.
Typical Application Fields
- Condition Monitoring of Rotating Machinery: Vibration monitoring and fault early warning for motors, pumps, fans, compressors, etc.
- Predictive Maintenance: Identifies potential faults such as bearing wear and imbalance in advance through long-term vibration trend analysis.
- Industrial Automation Systems: Integrates with PLC, DCS, and SCADA systems to achieve closed-loop control.
- Energy and Heavy Industry: Health monitoring of high-load equipment in power plants, petrochemical facilities, and steel mills.
Installation and Maintenance Guidelines
- Installation Location: Fix the module on a shockproof, well-ventilated cabinet or on-site bracket. Ensure the module is placed horizontally to avoid vibration transmission errors.
- Wiring: Follow the 24 V DC power supply polarity specifications. Use shielded wires and ground vibration sensors. Wire communication cables according to the selected protocol (RS‑485, Ethernet).
- Grounding: The module housing must be reliably grounded to prevent electromagnetic interference and safety hazards.
- Parameter Configuration: Set sampling rate, frequency range, alarm thresholds, etc., via upper computer software or on-site panel. Initialization with the manufacturer-provided configuration tool is recommended.
- Regular Inspection: Check power supply, wiring, and interface corrosion every 6 ~ 12 months. Calibrate vibration sensors to ensure measurement accuracy.
- Firmware Upgrade: The manufacturer releases firmware updates periodically. Upgrade during maintenance windows to obtain the latest features and security patches.
————————————————————————————————————-
