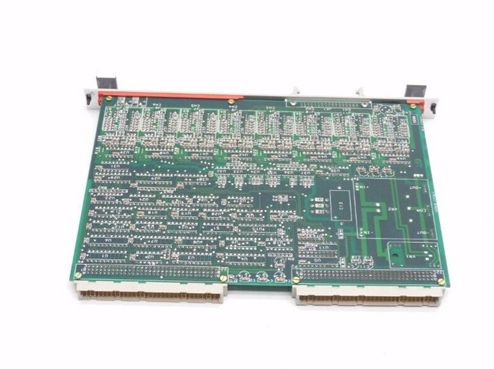

XYCOM 3510-03L1140031

XYCOM 3510-03L1140031 is a modular control unit designed for industrial automation applications. Featuring a low-power chip design, it supports multiple industrial communication interfaces and boasts a high protection rating, enabling reliable operation in a wide temperature range. This model is commonly used in scenarios such as process control, machine vision, robotics, and building automation.

Key Technical Specifications

• Part Number: 3510-03L1140031
• Operating Voltage: 24 V DC (supports 18 V–30 V range)
• Communication Interfaces: RS-485, Ethernet (10/100 Mbps), and XVME slot
• Protection Rating: IP65 (dustproof and waterproof)
• Operating Temperature: -20 °C to +60 °C
• Dimensions: Approximately 150 mm × 100 mm × 50 mm (Width × Depth × Height)
• Power Consumption: ≤ 5 W (typical)

Product Features

• Low-Power Design: Adopts high-efficiency chips and passive heat dissipation structure, ensuring low energy consumption and minimal heat generation during operation.
• Modular Plug-and-Play: Supports hot swapping for quick replacement and maintenance, reducing downtime.
• Multi-Protocol Compatibility: Dual channels (RS-485 and Ethernet) compatible with various fieldbuses and upper-level computer systems.
• High Protection Rating: IP65 protection makes it suitable for dusty, humid, or corrosive environments.
• Wide Temperature Adaptability: Operating range from -20 °C to +60 °C, meeting temperature fluctuations in industrial sites.

Structure and Composition

• Power Supply Module: Responsible for voltage conversion and regulation, with built-in overcurrent and overvoltage protection.
• Communication Interface Board: Integrates RS-485, Ethernet PHY, and XVME connectors.
• Processor/Control Unit: Based on an industrial-grade MCU, providing real-time control and I/O processing.
• Heat Dissipation Device: Metal heat sink combined with natural convection design ensures thermal stability during long-term operation.
• Housing: Metal frame + protective cover, complying with IP65 standards.

Typical Application Fields

• Industrial Automation: Production line PLCs, process control stations.
• Machine Vision and Robotics: Image acquisition, motion control nodes.
• Building Automation: HVAC, security, and energy management systems.
• Process Monitoring: High-reliability demand scenarios such as chemical, energy, and metallurgical industries.

Installation and Maintenance Guidelines

• Power Check: Verify that the supply voltage is within the 18 V–30 V range and wiring is secure.
• Fixing Method: Use screws or DIN rail mounting to ensure tight closure of the protective cover.
• Interface Connection: Use corresponding RS-485, Ethernet, or XVME cables, avoiding excessive bending.
• Hot Swap Operation: Replace modules when the system is shut down or in hot backup mode to prevent transient current impact.
• Regular Inspection: Check the protective seal and heat sink for dust accumulation every 6 months; clean if necessary.
