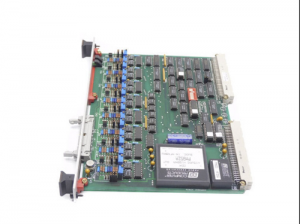

XYCOM PM101229 Interface Board
XYCOM PM101229
1. Overview
XYCOM PM101229 is a modular I/O card/interface board designed for industrial automation and process control applications. Featuring standard VME/PCI‑e mechanical dimensions, it is compatible with PLC and DCS systems of multiple brands, delivering reliable field signal acquisition and output capabilities. Widely deployed in industrial sites both domestically and internationally, this product boasts high anti-interference performance, long service life, and easy maintainability.
2. Technical Specifications
- Model: PM101229 (USPP)
- Power Supply: 24 V DC (12 V/48 V optional)
- Operating Temperature: -20 °C to +60 °C, with dustproof and moisture-proof design
- Input/Output: Supports multiple signal types including digital, analog, and pulse counting
- Communication Interface: Standard VME‑bus (or PCI‑e) backplane connection for high-speed data transmission
- Dimensions: Compliant with VME‑C standard 6U specification, facilitating chassis stacking installation
- Certifications: CE, RoHS, ISO 9001 quality management system
3. Product Features
- Modular Design: Plug-and-play functionality with hot-swappable support for quick maintenance and replacement.
- High Reliability: Adopts industrial-grade components, resists electromagnetic interference, and has a service life of ≥ 100,000 hours.
- Multi-functional I/O: Integrates digital input/output, analog (0‑10 V / 4‑20 mA), and counting/pulse functions to meet complex on-site requirements.
- Strong Compatibility: Compatible with mainstream control platforms such as Allen‑Bradley, ABB, and Schneider, with standard drivers provided.
- Safety Protection: Equipped with overcurrent, overvoltage, and short-circuit protection to ensure safe system operation.
4. Structure and Components
- Backplane Interface: VME‑C 6U mechanical slot that provides power supply, ground wire, and signal bus.
- Functional Modules: Includes digital I/O modules, analog I/O modules, and counting/pulse modules, which can be combined according to specific needs.
- Heat Dissipation Device: Aluminum alloy heat sink and fan interface to ensure thermal management under high-load conditions.
- Indicator Lights: Power, communication, and fault indicator lights for quick on-site diagnosis.
5. Typical Application Fields
- Industrial Automation Control Stations: Works with XYCOM HMI/PC chassis to realize on-site operator input and monitoring.
- Manufacturing Production Lines: Used for machine debugging, parameter setting, and fault diagnosis.
- Energy, Petrochemical, and Metallurgical Industries: Enables reliable signal acquisition in high-temperature, humid, or dusty environments.
- Logistics and Warehousing Systems: Supports equipment status monitoring and manual intervention.
6. Installation and Maintenance Key Points
Pre-installation Preparation
- Turn off the host power supply and confirm that the chassis is grounded.
- Check the integrity of the backplane interface corresponding to the slot.
Card Installation
- Align the PM101229 with the VME‑C 6U slot and gently push it until the locking buckle is fastened.
- Ensure the cable connector is fully inserted to avoid signal instability caused by loosening.
Wiring and Cabling
- Connect on-site sensors or actuators according to the wiring diagram, paying attention to the terminals corresponding to different signal types.
- Use thickened cables for high-current circuits and implement proper protection measures.
Commissioning and Testing
- After power-on, check the status of indicator lights to confirm normal communication.
- Perform I/O point detection via upper computer software to ensure each signal function meets expectations.
Daily Maintenance
- Regularly inspect the fixing screws of the card and backplane to prevent loosening due to vibration.
- Clean dust on the surface of the heat sink to maintain good heat dissipation.
- If the fault light is on, first check the power supply and signal lines, and replace the corresponding module if necessary.
————————————————————————————————————-
