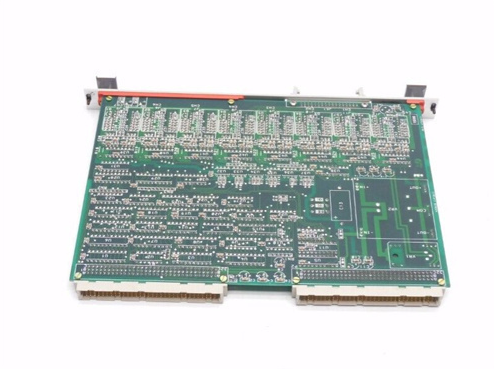

XYCOM PM9450 Industrial Control Module
XYCOM PM9450
XYCOM PM9450 is an industrial control module belonging to the XYCOM product series, designed to the XVME‑244 specification. Tailored for high-reliability industrial sites, it supports a variety of fieldbuses and Ethernet interfaces, making it ideal for automation systems in machine tools, packaging, printing, process control, and other industrial scenarios.
Key Specifications
Processor
Optional Intel Xeon series (customizable)
Memory
Up to 64 GB HBM (High Bandwidth Memory)
Storage
Scalable up to 160 GB SSD
Operating System
Windows XP Professional
Interfaces
- Video: 1 × VGA
- Communication: 2 × RS‑232, 2 × RS‑422/485, 1 × 10/100 Mbps Ethernet
- USB: 4 × USB 2.0
- Audio: Line Out, Mic In
Power Supply
24 V DC ±10% (power consumption: approx. 60 W)
Dimensions/Weight
375 mm × 315 mm × 70 mm, approx. 6.5 kg
Operating Environment
Temperature range: -10 °C to 50 °C; Humidity: 10%-90% (non-condensing); Front panel protection rating: IP65
Product Features
-
Modular DesignFeaturing a plug-and-play structure with hot-swappable capability, it enables rapid deployment and easy maintenance, minimizing system downtime during component replacement.
-
High ReliabilityCompliant with CE and FCC Class A standards, it boasts strong anti-interference performance, making it suitable for harsh industrial environments with complex electromagnetic conditions.
-
Multi-Interface CompatibilityEquipped with rich fieldbus, Ethernet, and USB interfaces, it meets the connection requirements of diverse on-site devices, ensuring seamless integration into existing automation networks.
-
Low-Power Heat DissipationAdopts low-power chips and passive heat dissipation structure, which reduces energy consumption and extends the service life of the module without the need for additional cooling fans.
-
ScalabilityMemory, storage, and I/O can be customized according to actual needs, supporting large-scale data collection and processing for data-intensive industrial applications.
Structure and Components
-
CPU MotherboardEquipped with an optional Xeon processor, delivering powerful computing capabilities to handle complex industrial control algorithms and real-time data processing tasks.
-
Memory/Storage ModuleComes with slots for DDR2/DDR4 memory sticks and SSD/HDD hard drives, allowing flexible expansion of storage and memory capacity based on application demands.
-
I/O Expansion CardsIncludes interface cards for RS‑232/RS‑485, Ethernet, USB, VGA, and audio, providing diversified connectivity options for different peripheral devices.
-
Power ModuleAccepts 24 V DC input, with built-in voltage stabilization and power management functions to ensure stable power supply for the entire module.
-
ChassisMade of aluminum-iron metal structure with IP65 protection rating, featuring a compact size that saves on-site installation space while ensuring dust and water resistance for the front panel.
Typical Application Fields
-
Machine Tools and CNC SystemsRealize local control and real-time monitoring of equipment, ensuring high-precision operation of machining processes.
-
Packaging and Printing EquipmentSupport high-speed data collection and real-time parameter adjustment, adapting to the fast-paced production rhythm of packaging and printing lines.
-
Process ControlConduct on-site real-time monitoring in chemical, energy, metallurgical, and other industries, ensuring the stability and safety of production processes.
-
Machine Vision/RoboticsCooperate with XYCOM servo drives and motion control cards to achieve closed-loop control, improving the accuracy and responsiveness of robotic and machine vision systems.
-
Building/Facility ManagementRealize centralized monitoring of HVAC, lighting, and security systems, optimizing the operation efficiency of building infrastructure.
Installation and Maintenance Guidelines
-
Installation MethodSupports desktop or panel-mounted installation; the fixing method can be selected according to on-site space conditions to ensure stable placement of the module.
-
WiringFirst connect the power supply and ground wire, then connect RS‑232/RS‑485, Ethernet, USB, and other interfaces in sequence to ensure signal integrity and avoid electromagnetic interference.
-
Hot-SwappingThe modular design allows replacement of I/O cards during system operation, reducing equipment downtime and improving production continuity.
-
Regular InspectionPeriodically check the power supply voltage stabilization, dust accumulation on heat sinks, and the integrity of the IP65 protection rating to ensure the module operates in good condition.
-
Firmware UpgradePerform BIOS/driver upgrades via Ethernet or USB to maintain compatibility with the latest fieldbus protocols and ensure the module adapts to evolving industrial communication standards.
————————————————————————————————————-
