Eaton 2150A84G01 Lfr-4 Low Voltage Circuit Breaker

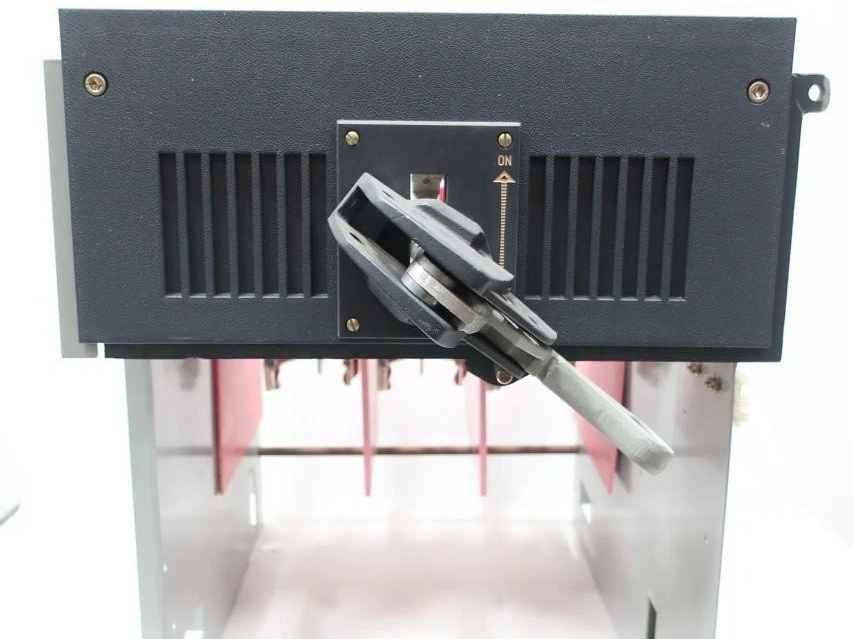

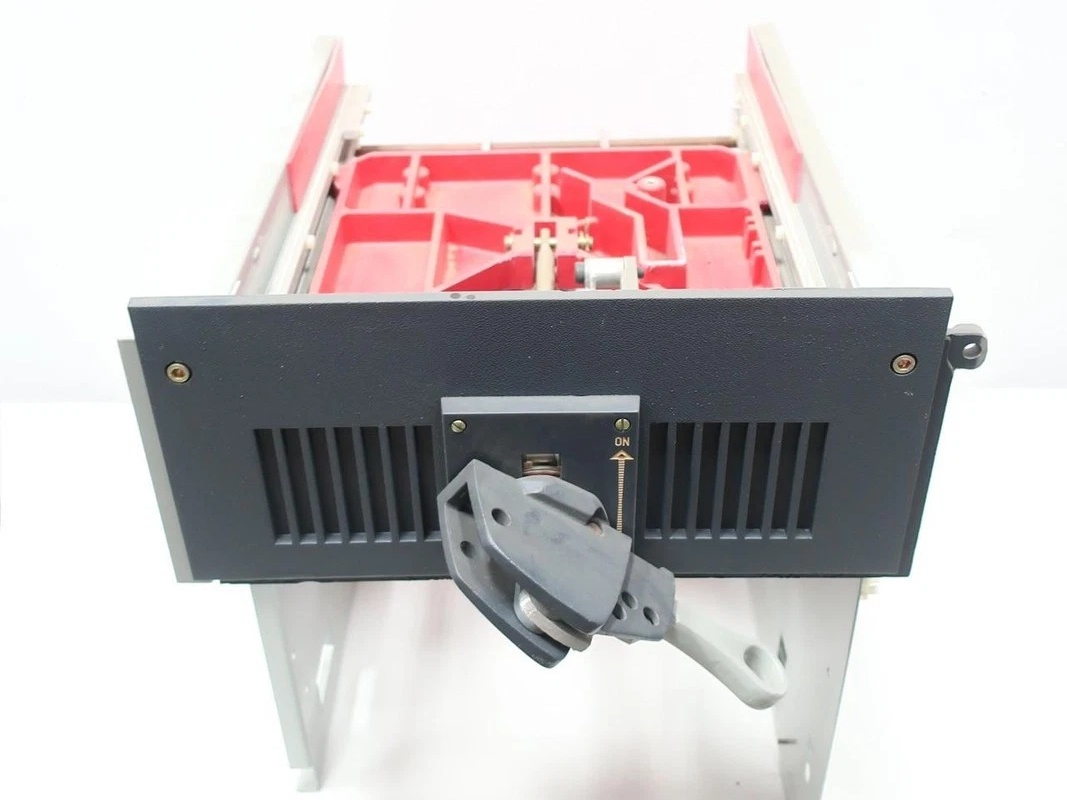

Eaton 2150A84G01 Lfr-4
1. Overview
Eaton 2150A84G01 LFR-4 is a low-voltage circuit breaker (LFR-4) belonging to the Eaton 2150 series. Designed specifically for industrial and commercial power distribution systems, it features high reliability, a compact structure, and a modular installation method. It can meet the circuit protection needs of power systems with a rated voltage of 400 V AC (or 480 V AC).
2. Specifications
| Specification | Details |
|---|---|
| Rated Voltage | 400 V AC (480 V AC) |
| Rated Current | 10 A ~ 1250 A (optional) |
| Short-Circuit Breaking Capacity | 10 kA ~ 65 kA (depending on rated current) |
| Pole Configuration | 2P, 3P, 4P |
| Contact Type | Mechanical/Electronic Hybrid |
| Terminal Arrangement | Standard DIN-rail, Panel Mount |
| Ambient Temperature Range | –25 °C ~ +55 °C |
| Protection Class | IP20 (Indoor Use) |
| Weight | Approximately 5 kg ~ 30 kg (depending on current rating) |
3. Product Features
- Modular Design: Enables quick replacement of circuit breaker units, reducing maintenance downtime.
- High Breaking Capacity: Meets the short-circuit protection requirements of industrial power distribution systems.
- Adjustable Overcurrent Setting: Offers mechanical or electronic adjustment to adapt to different load characteristics.
- Compact Size: Suitable for power distribution cabinets or panels with limited space.
- Reliable Mechanical Life: Adopts wear-resistant contact materials to ensure consistent performance without degradation after tens of thousands of operations.
- Compatibility with Eaton Unified Power Distribution Platform: Can be linked with Eaton’s power distribution monitoring system (e-Power) to realize remote status monitoring.
4. Structure and Components
- Enclosure: High-strength steel enclosure providing mechanical protection.
- Contact Assembly: Main contacts, auxiliary contacts (indicator lights, signal output).
- Operating Mechanism: Manual/electric operating handle combined with a spring reset device.
- Overcurrent Setting Device: Mechanical dial or electronic adjustment module.
- Terminal Block: Screw terminals or spring terminals for wiring.
- Accessories: Junction box, grounding bolts, mounting brackets, indicator lights, etc.
5. Application Fields
- Industrial power distribution cabinets, computer room power systems
- Main power distribution and distribution circuits in commercial buildings
- Power protection in heavy-duty environments such as mining and petrochemical industries
- Power distribution protection in data centers and communication base stations
- Power distribution in mechanical manufacturing and automated production lines
6. Installation and Maintenance
- Installation: Follow IEC 60947-2 standards. First, confirm that the rated voltage, rated current, and pole configuration match. Fix using DIN-rail or panel mounting brackets. Ensure power is disconnected and insulation testing is performed before wiring.
- Commissioning: After setting the overcurrent value, conduct closing/opening tests to check if indicator lights and signal output are functioning normally.
- Routine Maintenance: Inspect contact wear, spring reset force, and terminal tightness every 6 ~ 12 months. Verify the functionality of indicator lights and signal output. Replace contact assemblies or the entire unit if necessary.
- Troubleshooting: Use the Eaton monitoring system to obtain circuit breaker status logs, and combine on-site current waveform analysis to quickly locate faults such as overload, short circuit, or mechanical jamming.
————————————————————————————————————-
