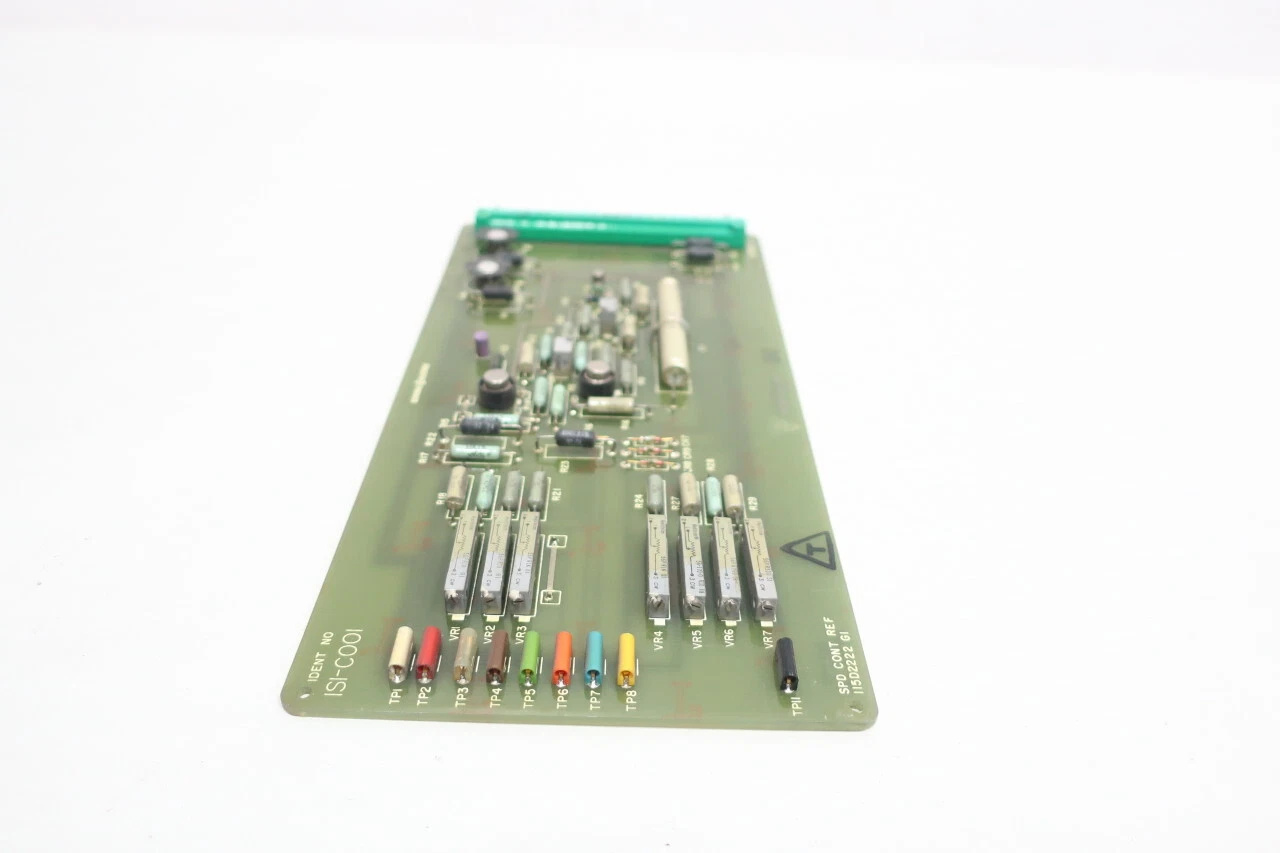

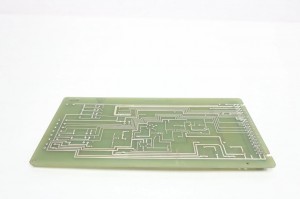

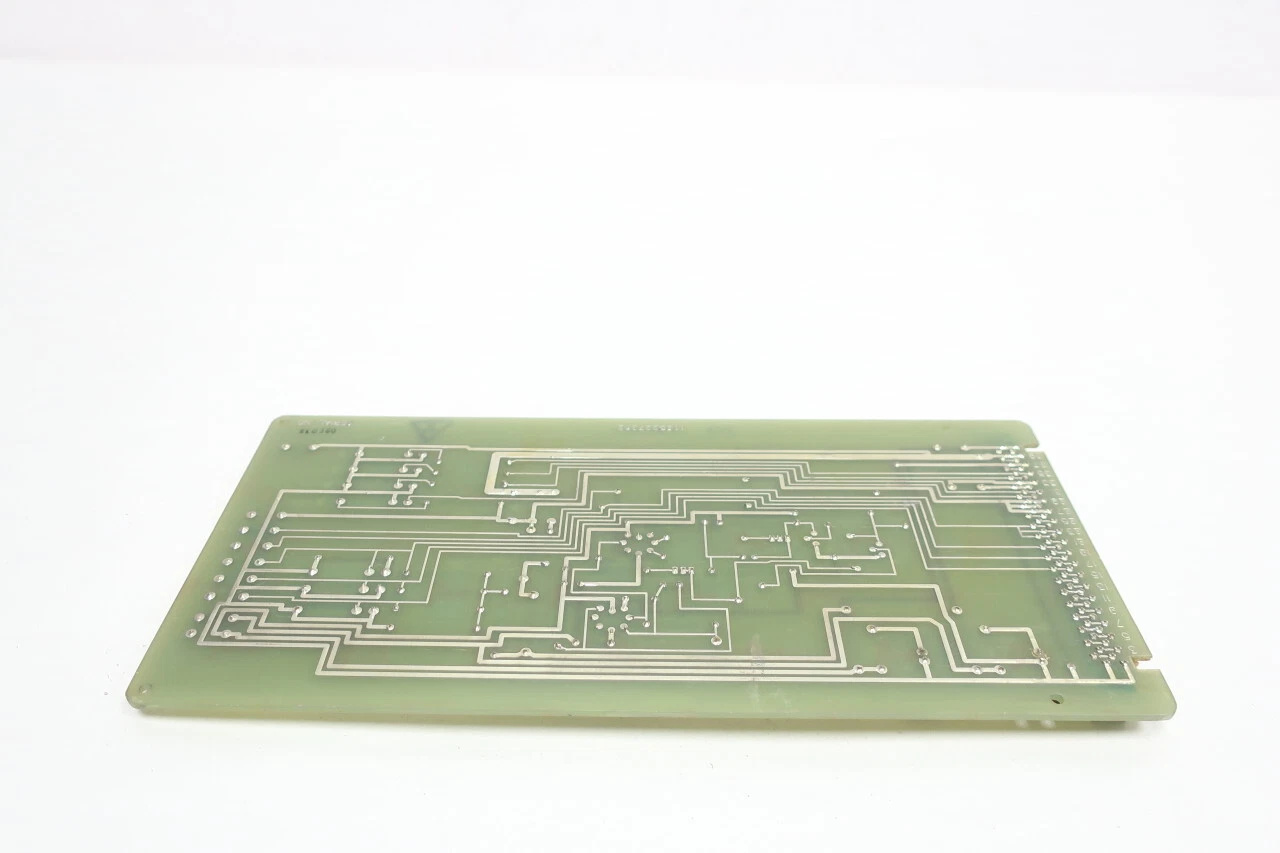

GE 115D2222G1 Reference Circuit Board
GE 115D2222G1
GE 115D2222G1 is a speed control reference circuit board specifically designed by General Electric for industrial automation systems. This board is mainly used to provide accurate speed feedback signals to upper-level controllers (such as PLC and DCS) and realize closed-loop speed regulation of motors or actuators. It is often used as a Speed Control Reference (SPD Cont Ref) module in GE Mark VI, Mark VIe, and Mark X series control systems.
Key Technical Parameters
| Parameter | Description |
|---|---|
| Power Supply | 24 V DC (48 V DC optional) power supply, with over-voltage and under-voltage protection |
| Input Signal | 0-10 V or 4-20 mA speed feedback (configurable) |
| Output Signal | 0-10 V, 4-20 mA, or RS-485 (Modbus) digital signal |
| Resolution | 12 bit (≈0.024 %FS) |
| Operating Temperature | –20 °C ~ +70 °C, meeting industrial environment requirements |
| Protection Class | IP 65 (dustproof and waterproof) |
| Communication Interface | Compatible with GE Mark VI/VIe bus (PROFIBUS, PROFINET, Ethernet/IP) |
| Dimension | Approximately 120 mm × 80 mm × 30 mm (standard DIN-rail mounting) |
Product Features
- High-precision Speed Reference: Adopts 12-bit A/D conversion to achieve delicate speed feedback, meeting the control needs of high-speed servo systems.
- Multi-signal Compatibility: Supports both analog (0-10 V, 4-20 mA) and digital (RS-485) outputs, facilitating connection with different upper-level systems.
- Modular Design: Can be directly inserted into the I/O expansion slot of GE Mark VI/VIe control cabinets, enabling easy installation and maintenance.
- Strong Anti-interference: Integrates filtering and isolation circuits on the board, suitable for industrial sites with strong electromagnetic noise.
- Reliable Protection: IP65 protection class, dustproof and waterproof, suitable for harsh environments (such as chemical and metallurgical workshops).
- Diagnostic Function: Built-in self-test and fault indicator lights, supporting remote diagnosis to improve system availability.
Structure and Composition
- Power Module: Voltage stabilization, over-voltage/under-voltage protection circuits.
- Signal Acquisition Module: High-precision A/D converter, input filter.
- Signal Processing Module: PID parameter storage, speed reference calculation core.
- Communication Interface Module: RS-485/Ethernet transceiver chip, Mark VI bus adapter.
- Output Drive Module: Analog/digital signal drive circuit, isolation transformer.
- Mechanical Enclosure: Metal frame + DIN-rail mounting holes, complying with IEC 60204-1 standard.
Typical Application Fields
- High-speed servo systems (CNC machine tools, packaging machinery)
- Process control (closed-loop flow/speed control in chemical industry and oil refining)
- Energy management (speed monitoring of wind power and gas turbines)
- Automated production lines (assembly and handling robots)
- Industrial robots (joint speed control)
Installation and Maintenance Points
Installation
- Fix it in the control cabinet by DIN-rail mounting method, ensuring the screws are tight.
- Follow the IEC 60617 standard for wiring, and use shielded cables to connect analog input/output to prevent interference.
- Check the power polarity and voltage range before connecting the power supply to avoid wrong connection.
Debugging
- Configure parameters through the upper-level system (such as GE Proficy, iFIX), including setting the input signal type and PID parameters.
- Use the on-board indicator lights or remote diagnosis function to confirm normal signal acquisition.
Daily Maintenance
- Regularly check whether the terminal blocks are loose or corroded.
- Clean the enclosure and keep the heat dissipation holes unobstructed.
- Perform a functional self-test every 12 months and record the fault log.
Troubleshooting
- No Signal: Check if the power supply, input cables, and signal source are normal; confirm that the power indicator light on the board is on.
- Signal Drift: Check if the shielding is intact and recalibrate the A/D converter.
- Communication Abnormality: Check the bus terminal resistance and network configuration; replace the communication module if necessary.
————————————————————————————————————-
