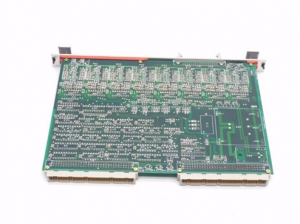

XYCOM 124007 Chassis Motherboard
XYCOM 124007
1. Overview
- Product Positioning: Serves as the main board (backplane) for VME-bus chassis, providing power distribution, signal routing, and mechanical/electrical support for module slots.
- Applicable Platforms: XYCOM XVME-series (e.g., XVME-240, XVME-400, XVME-560) and other industrial computers compatible with VME-bus.
- Key Advantages: Compact structure, high reliability, support for multiple VME-bus slots (3-slot, 4-slot, etc.), facilitating later expansion and maintenance.
2. Parameters (Common Technical Specifications)
| Parameter | Description |
|---|---|
| Dimensions | Standard VME-bus backplane size (approximately 19 inches × 13 inches) |
| Slots | 3-slot (4-slot optional) VME-bus slots, supporting 64-bit data bus |
| Power Supply | Supply voltages of 5 V, 12 V, –5 V, –12 V, compliant with VME-bus standards |
| Signals | Supports multiple bus signals (IRQ, DMA, address/data lines) |
| Compatibility | Compatible with modules such as XYCOM XVME-240, XVME-400, XVME-560 |
| Environment | Operating temperature range of 0 °C ~ +55 °C, with anti-vibration and anti-shock design |
3. Product Features
- Modular Design: Adopts standard VME-bus interface, enabling quick plugging/unplugging and system upgrades.
- High Reliability: Complies with industrial-grade electrical and mechanical standards, featuring anti-interference and anti-vibration properties.
- Multi-Power Support: Provides complete VME-bus power distribution to meet the power supply needs of different modules.
- Easy Maintenance: The backplane has a simple structure, allowing convenient fault location and component replacement, thus reducing maintenance costs.
4. Structure and Composition
- Backplane: Mainly bears VME-bus signal routing and power distribution.
- Slot Area: Offers 3 (or 4) VME-bus slots for inserting standard cards.
- Power Distribution Module: Internal wiring enables multi-channel voltage output, including 5 V, 12 V, –5 V, –12 V, etc.
- Connectors: Include power, signal, and cooling fan interfaces at the front and rear ends.
5. Application Fields
- Industrial Automation Control: PLC, motion control, and robot control systems.
- Data Acquisition and Monitoring: Fieldbus gateways, sensor arrays, and process monitoring.
- Test and Measurement Instruments: High-speed data acquisition cards and signal analyzers.
- Military and Aerospace: Embedded systems requiring high-reliability VME-bus architecture.
6. Installation and Maintenance Points
Installation
- Fix the main board in a chassis that meets VME-bus specifications, ensuring the screws are tightly fastened.
- Connect power cables (for 5 V, 12 V, etc.) according to the power wiring diagram, and check the polarity.
- Insert functional modules (e.g., CPU, I/O cards) and ensure the card latches are fully closed.
Debugging
- Before power-on, use a multimeter to check if the power distribution is normal.
- After power-on, confirm the integrity of signals in each slot through Power-On Self-Test (POST).
Maintenance
- Regularly check the dust and oxidation status of the backplane slots, and clean them with an anti-static brush if necessary.
- If a module malfunctions, first eliminate poor card contact, then replace the corresponding VME-bus card.
- Record the replaced components and test results for each maintenance to facilitate traceability.
————————————————————————————————————-
